HANGERS 41SSI0100 1-Inch Split Ring Extension Hanger

Product Description

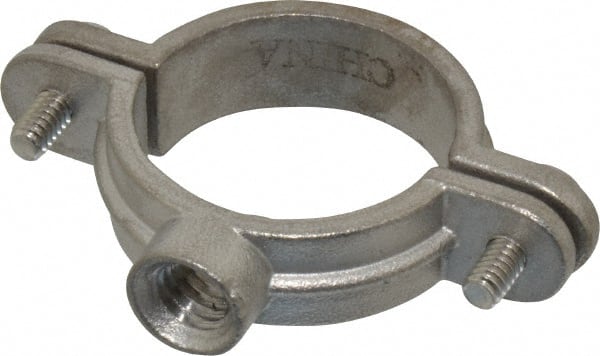

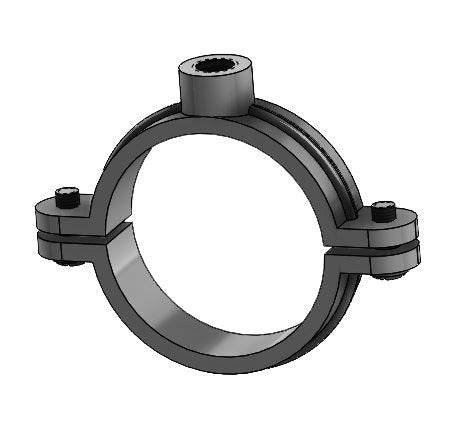

The HANGERS 41SSI0100 is a durable split ring extension hanger, crafted for suspending non-insulated stationary pipe lines in both horizontal and vertical orientations. Made from T-304 stainless steel, this hanger ensures resistance to corrosion, making it suitable for a variety of environments.

• Designed for suspension of stationary pipe lines.
• Complies with MSS SP-58/SP-69 (Type # 12).
• Maximum load capacity of 180 lbs.

Product Highlights

This hanger is suitable for one-inch pipe sizes and features a rod size of three-eighths inches.

Product Information

Standard Information

• Manufacturer: Empire Industries
• MPN: 41SSI0100

Technical Specifications

• Material: Stainless Steel
• Grade: T-304
• Pipe/Tube Size: 1 inch
• Rod Size: 3/8 inch
• Load Capacity: 180 lbs
• Length: 2-3/4 inches
• Dimensions: 2 inches H
• Suitable For Use With: 1.315 inches OD Pipe
• Includes: 10-24 Screw
• Standards and Approvals: Complies with MSS SP-58/SP-69 (Type # 12)
