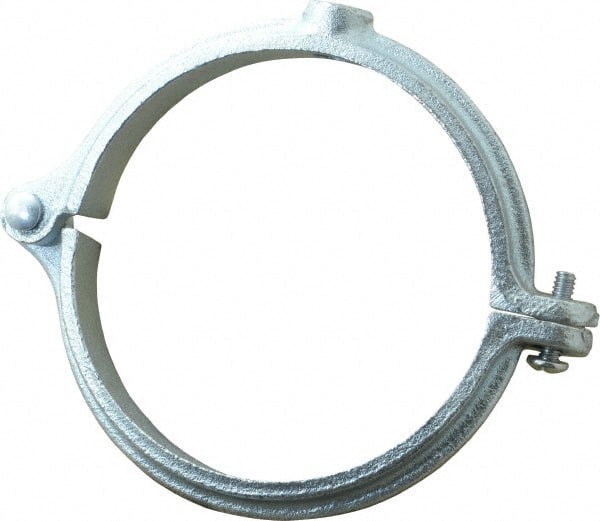

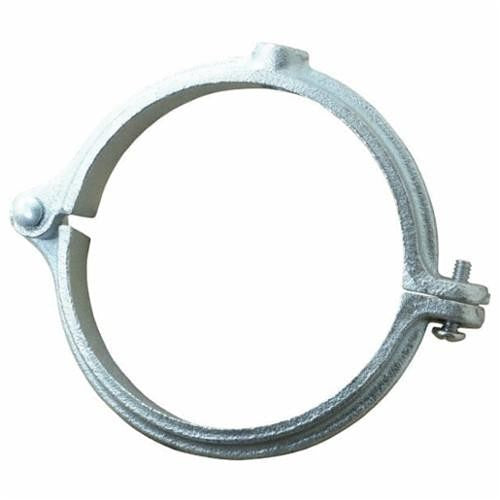

HANGERS 41HG0400 Split Ring Hanger, Electro-Galvanized, for 4 in. Pipe

Product Description

The HANGERS 41HG0400 is a split ring hanger suitable for supporting stationary, non-insulated pipes in either horizontal or vertical orientation. This product is designed to accommodate pipes or tubes with a diameter of four inches and is made of durable malleable iron, finished with electro-galvanization to resist corrosion.

• Supports a load capacity of 300 lbs.
• Compatible with pipes up to 4-1/2 inches in outside diameter.
• Features a bolt thread hinged design for easy installation and removal.

Product Highlights

This hanger is ideal for plumbing and HVAC applications, providing a reliable method for securing pipes. Its electro-galvanized finish ensures longevity, making it a practical choice for various structural requirements.

Product Information

Standard Information

• Brand: HANGERS
• MPN: 41HG0400

Technical Specifications

• Product Type: Split Ring Hanger
• Material: Malleable Iron
• Finish: Electro-Galvanized
• Pipe/Tube Size: 4 in
• Suitable For Use With: 4-1/2 in OD Pipe
• Pipe Outside Diameter: 4.5000 in
• Rod Size: 1/2 in
• Load Capacity: 300 lb
• Series: FIG 41H
• Type: Bolt Thread Hinged
• Dimensions: 5-9/16 in H
• Length: 6-3/4 in
