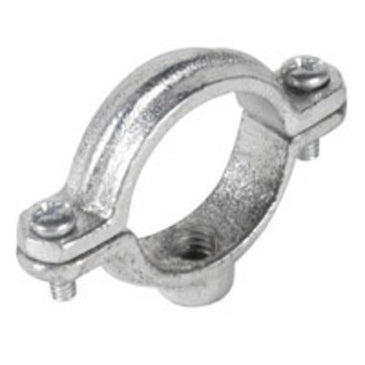

HANGERS 41G0050 Split Ring Extension Hanger 1/2 in

Product Description

The HANGERS 41G0050 is a split ring extension hanger, ideal for suspending stationary and non-insulated copper tubing. This product is constructed from electro-galvanized malleable iron which provides corrosion resistance. It is designed for use with pipes of 0.84 inches outer diameter and can be used with a 3/8-16 rod for secure mounting. This hanger is part of the FIG 41 series, catering to specific plumbing needs.

• Designed for suspension of stationary copper tubing
• Features bolt thread for secure attachment
• Constructed from electro-galvanized malleable iron

Product Highlights

This extension hanger is suitable for both vertical and horizontal installations, ensuring versatility in various applications.

Product Information

Standard Information

• MPN: 41G0050
• Series: FIG 41

Technical Specifications

• Pipe/Tube Size: 1/2 in
• Rod Size: 3/8-16
• Load Capacity: 180 lb
• Length: 2-1/8 in
• Dimensions: 1-3/16 in H
• Material: Malleable Iron
• Finish: Electro-Galvanized
• Suitable For Use With: 0.84 in OD Pipe
