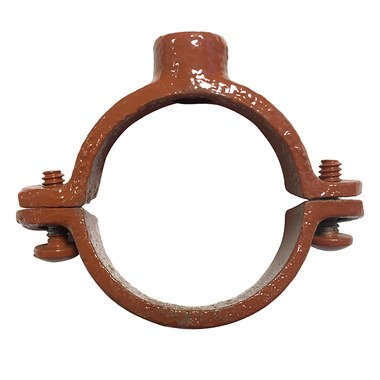

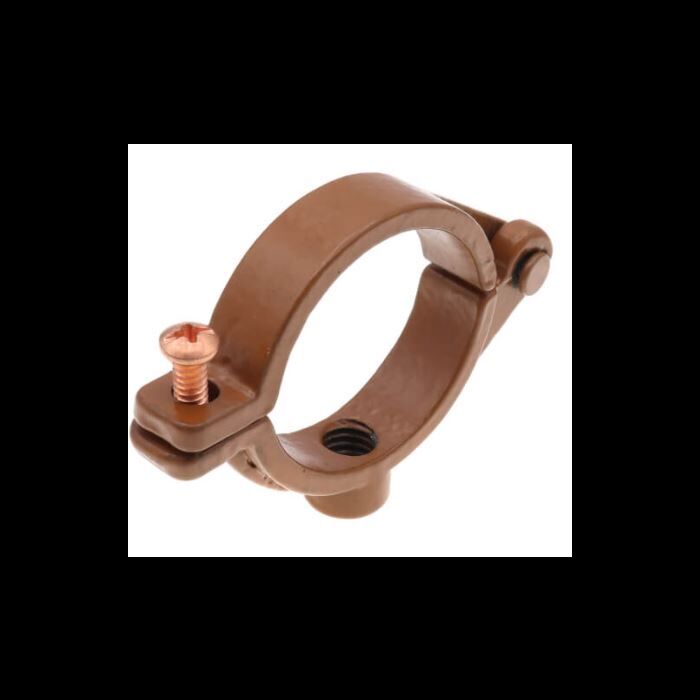

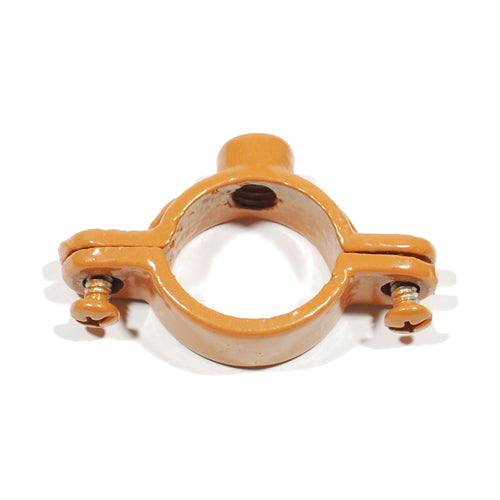

HANGERS 41CT0150 Copper Tube Split Ring Extension Hanger

Product Description

The HANGERS 41CT0150 is a split ring extension hanger designed for suspending non-insulated stationary copper tubing in both horizontal and vertical orientations. This product is constructed from copper gard or malleable iron with a protective copper epoxy coating to enhance corrosion resistance.

• Designed for suspending copper tubing.
• Split design allows for easy installation.
• Suitable for horizontal or vertical mounting.

Product Highlights

This extension hanger is efficient for securing copper tubes in multiple applications, ensuring stability and support.

Product Information

Standard Information

• Brand: Hangers
• Type: Split Hanger

Technical Specifications

• Manufacturer Part Number: 41CT0150
• Tube Size: 1 1/2 Inch
• Maximum Pipe Size: 1-1/2 Inch
• Material: Copper Gard
• Finish: Copper Epoxy Coated
• Screw Size: #10-24
• Mounting Size: 3/8 Inch-16 TPI Rod
• Height: 2-5/8 Inch
• Width: 3 Inch
• Load Rating: 180 Pound
• Pipe Outer Diameter: 1.625 Inch
• A (In.): 3/8 - 16
• B (In.): 1 3/16
• C (In.): 3
• D (In.): 2 3/16
