HANGERS 41CT0100 1-Inch Copper Tube Split Ring Extension Hanger

Product Description

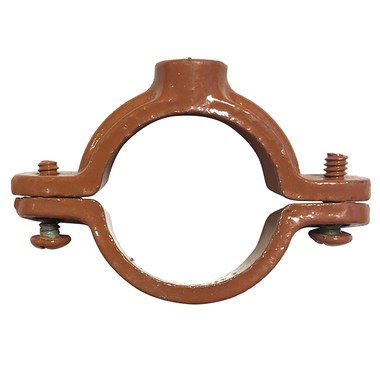

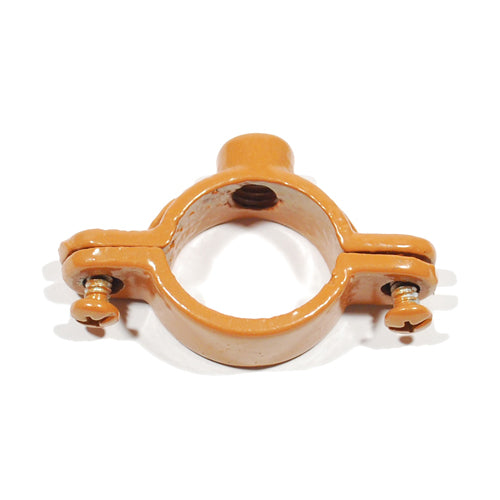

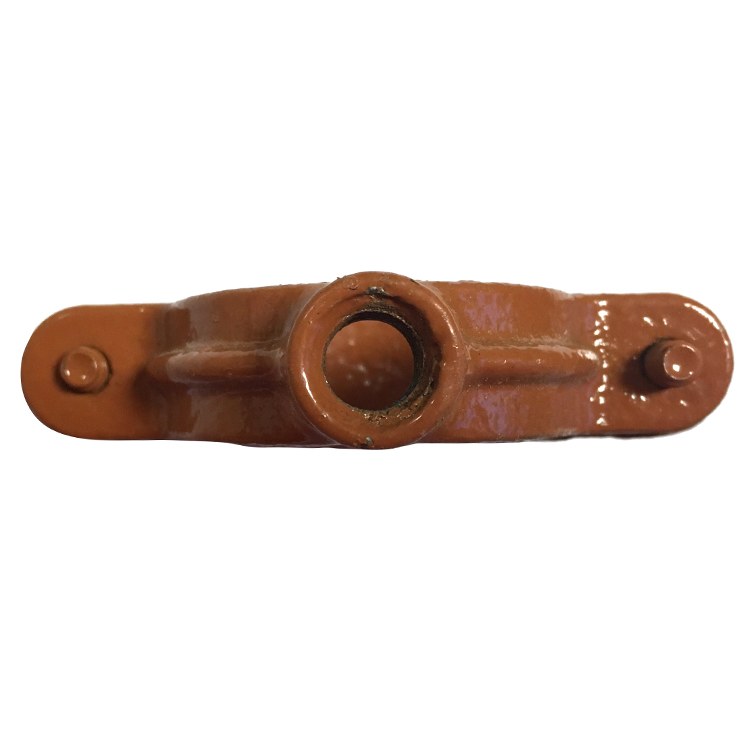

The Hangers 41CT0100 is a split ring extension hanger for suspending stationary, non-insulated copper tubing. Made from copper, this hanger has an epoxy coating for durability. It is designed to hold one-inch copper tubes securely and comes with a ten twenty-four screw. It can be used for both horizontal and vertical suspension of piping.

• Designed for suspension of non-insulated stationary copper tubing.
• Suitable for both horizontal and vertical applications.
• Features a copper epoxy coating for additional protection.

Product Highlights

This product is ideal for plumbers and HVAC professionals needing a reliable solution for securing copper tubing in various configurations.

Product Information

Standard Information

• Type: Split Hanger
• Fits Pipe Size: 1 inch

Technical Specifications

• MPN: 41CT0100
• Tube Size: 1 inch
• Outside Diameter: 1-1/8 inches
• Screw: 10 - 24
• Length: 2-1/2 inches
• Work Load Limit: 180 lb
• Finish: Copper epoxy coated
• Material: Copper
