HANGERS 41CT0050 1/2 in. Copper Tube Split Ring Extension Hanger

Product Description

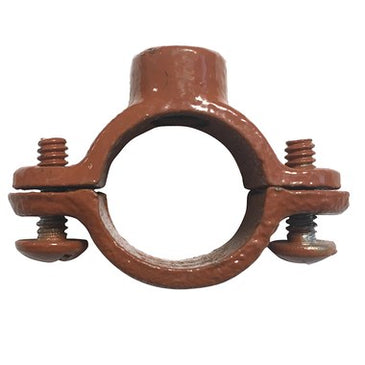

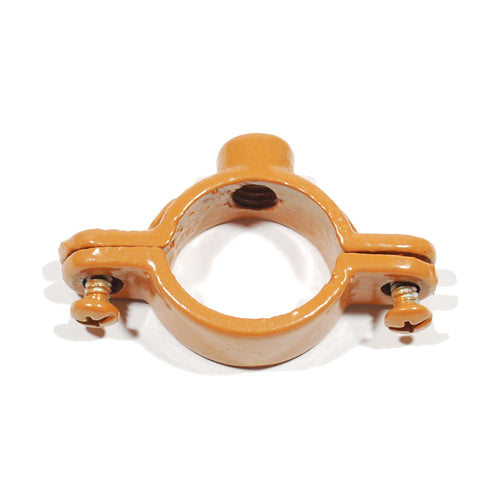

The HANGERS 41CT0050 is a split ring extension hanger designed for suspending stationary, non-insulated copper tubing. This hanger can accommodate one half inch pipe or tube sizes and includes a bolt thread for secure attachment. Made from malleable iron, it features a copper epoxy coating suitable for various industrial and commercial applications. Designed for either horizontal or vertical suspension.

• Designed for suspension of non-insulated stationary copper tubing.
• Features a copper epoxy coating.
• Suitable for one half inch pipe/tube.

Product Highlights

The HANGERS 41CT0050 offers reliable support and stability for copper tubing installations.

Product Information

Standard Information

• Brand: Hangers
• MPN: 41CT0050

Technical Specifications

• Type: Split Hanger
• Pipe/Tube Size: 1/2 in
• Rod Size: 3/8-16
• Material: Malleable Iron
• Finish: Copper Epoxy Coated
• Load Capacity: 180 lb
• Length: 1-7/8 in
• Dimensions: 1-1/8 in H
• Outside Diameter: 5/8 in
• Coating: Epoxy
• Collection: Figure 41CT
• Screw Size: 10 - 24
• A Size: 3/8 - 16
• B Size: 11/16
• C Size: 1 7/8
• D Size: 1 1/8
• MSS: MSS SP-58
• UL Listed: No
• FM Approved: No
