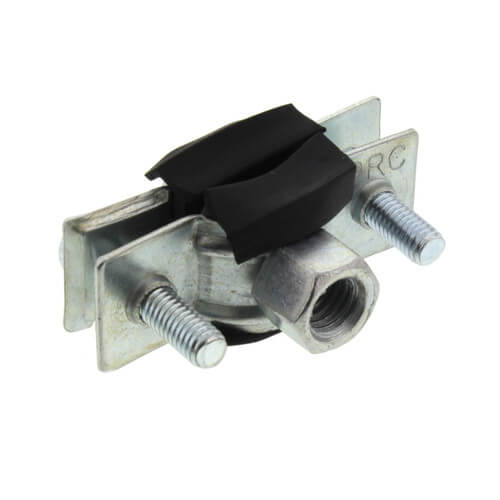

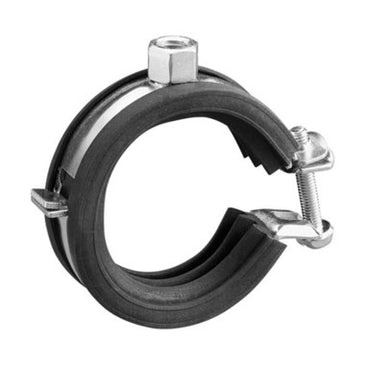

HANGERS 40HS0008 Split Ring Hanger

Product Description

The HANGERS 40HS0008 split ring hanger is suitable for suspending stationary pipe lines. It is designed to accommodate one and a half inches IPS pipe or tube and uses a three eighths by sixteen rod for support.

• Designed for both insulated and non-insulated pipe lines
• Constructed from electro-galvanized carbon steel for enhanced corrosion resistance
• Cushioned design minimizes vibration for stable support

Product Highlights

This hanger is ideal for both horizontal and vertical suspension applications.

Product Information

Standard Information

• Manufacturer Part Number: 40HS0008
• Material: Carbon Steel

Technical Specifications

• Finish: Electro-Galvanized
• Pipe/Tube Size: 1-1/2 inches IPS
• Rod Size: 3/8-16
• Load Capacity: 180 lb
• Temperature Range: -58 to 230 degrees F
• Standard Compliance: MSS SP-58 and SP-69
• Application: Suspension of Stationary Non-Insulated Pipe Lines
• Product Type: Cushioned
