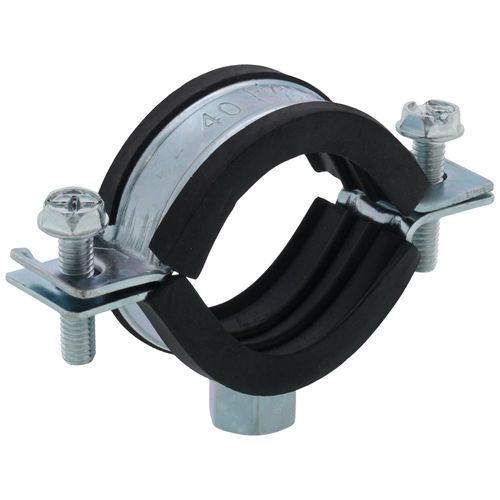

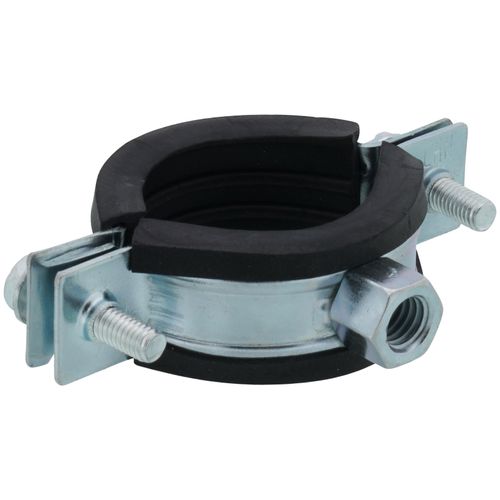

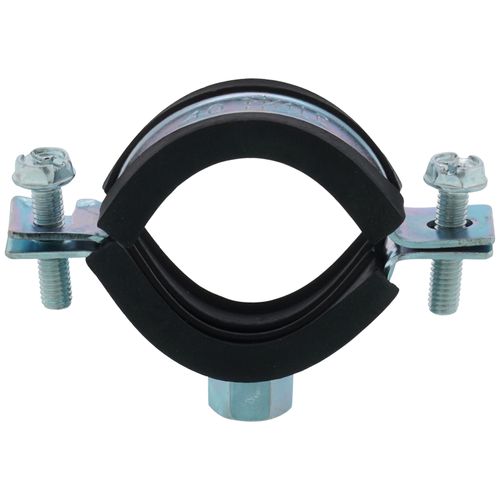

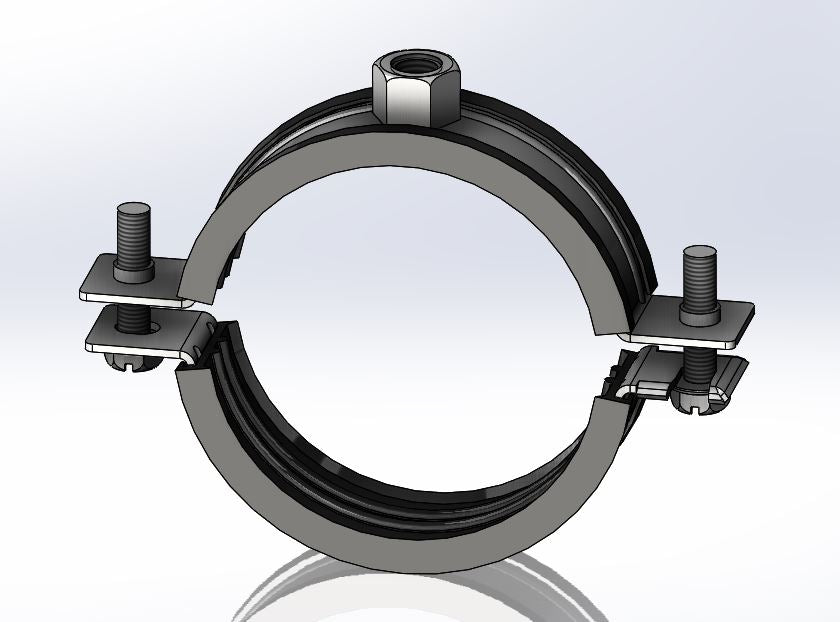

HANGERS 40HS0007 Split Ring Extension Hanger

Product Description

The HANGERS 40HS0007 is designed for suspending stationary pipe lines either horizontally or vertically. Made from carbon steel and featuring an electro-galvanized finish, this hanger is compatible with 1-1/4 IPS and 1-1/2 CTS pipe sizes. It includes EPDM insulation to enhance support and reduce vibrations.

• Constructed from durable carbon steel
• Suitable for various pipe sizes
• Support load capacity of 180 lb

Product Highlights

This hanger is ideal for non-insulated stationary pipe lines.

Product Information

Standard Information

• Manufacturer Part Number: 40HS0007
• Material: Carbon Steel

Technical Specifications

• Finish: Electro-Galvanized
• Pipe/Tube Size: 1-1/4 IPS x 1-1/2 CTS
• Rod Diameter: 3/8
• Rod Size: 3/8-16
• Load Capacity: 180 lb
• Length: 3-1/2 inches
• Dimensions: 2-1/2 inches H
• Series: FIG 40HS Handy
• Style: Split Ring
• Weight: 0.19
• Application: Suspension of stationary non-insulated pipe lines
• Load Rating: 180 LB
• Product Type: Cushioned
• Tube Size: 1-1/2 IN
• Standard: MSS SP-58 and SP-69
• Temperature: -58 to 230 DEG F
