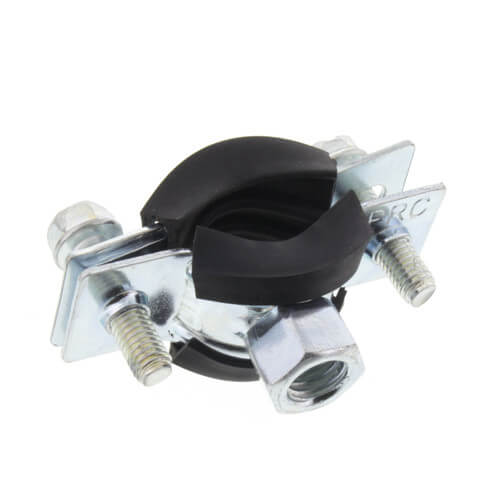

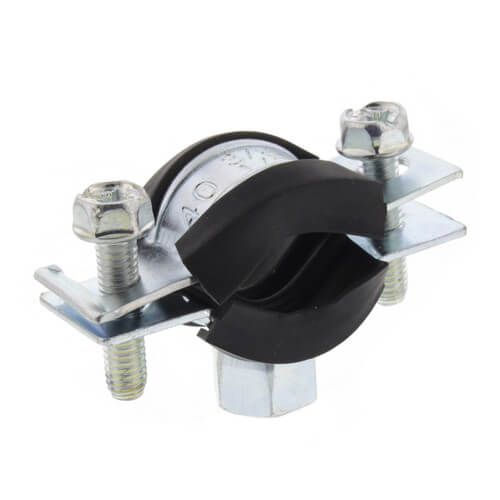

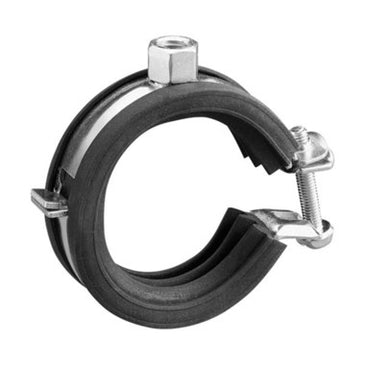

HANGERS 40HS0002 Split Ring Hanger

Product Description

The HANGERS 40HS0002 split ring hanger provides a reliable solution for suspending stationary non-insulated pipe lines in industrial and commercial settings. Made from electro-galvanized steel, it is built to resist corrosion and ensure durability. The hanger’s split ring design allows easy installation around existing pipelines, making it a practical choice for many applications.

• Constructed from corrosion-resistant electro-galvanized steel
• Split ring design allows for quick and easy installation
• Available cushioned option for vibration damping

Product Highlights

This hanger conforms to MSS SP-58 and SP-69 standards, making it suitable for various environments.

Product Information

Standard Information

• Brand: Hangers
• MPN: 40HS0002

Technical Specifications

• Material: Carbon Steel
• Finish: Electro-Galvanized with EPDM Insulation Liner
• Size: 1/2 CTS, 3/8 IPS
• Pipe/Tube Size: 3/8 in IPS x 1/2 in CTS
• Rod Diameter: 3/8
• Rod Size: 3/8-16
• Load Capacity: 180 lb
• Application: Suspension of Stationary Non-Insulated Pipe Lines
• Maximum Pipe Size: 3/4 in
• Minimum Pipe Size: 19/32 in
• Product Type: Cushioned
• Temperature Range: -58 to 230 DEG F
• Length: 2-3/8 in
• Dimensions: 1-1/2 in H
• Pipe Size: 0.675 (O.D)
• Series: FIG 40HS Handy
