HANGERS 310NF0400 4-Inch Pre-Galvanized Swivel Ring Hanger

Product Description

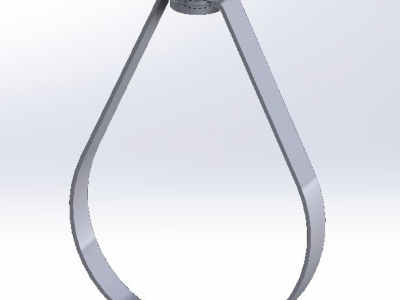

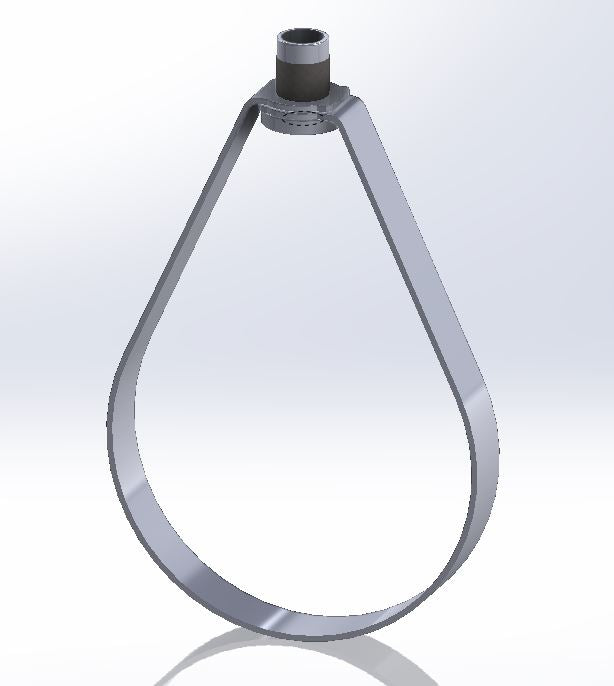

The HANGERS 310NF0400 is a swivel ring hanger used for suspending non-insulated stationary pipe lines. This product is made from pre-galvanized carbon steel ensuring resistance to corrosion. It is suitable for a four-inch IPS pipe size and features a three-eighth-inch threaded rod. The design meets the minimum rod size requirements established by NFPA, making it ideal for sprinkler pipe support.

• Designed for non-insulated stationary pipe lines.
• Swivel ring allows for easy alignment and adjustment.
• Complies with NFPA standards.

Product Highlights

This hanger is user-friendly and offers flexibility for pipe installation and maintenance.

Product Information

Standard Information

• Brand: HANGERS
• MPN: 310NF0400

Technical Specifications

• Type: Swivel Ring Hanger
• Sub Type: Em-Lok Adjustable Swivel Ring Hanger
• Figure: 310NF
• Size: 4 Inches
• Material: Carbon Steel
• Finish: Pre-Galvanized
• Length: 7.25 Inches
• Application: Suspension of Non-Insulated Stationary Pipe Lines
• Knurl Size: 3/8 Inches
• Load Rating: 650 Pounds
• Pipe Type: IPS
• Product Type: Adjustable
• Pipe: Black Malleable/Brass 4
• Style: Emlock
• Threaded Rod Size: 3/8-16
• Approximate Weight: 0.32 Pounds
