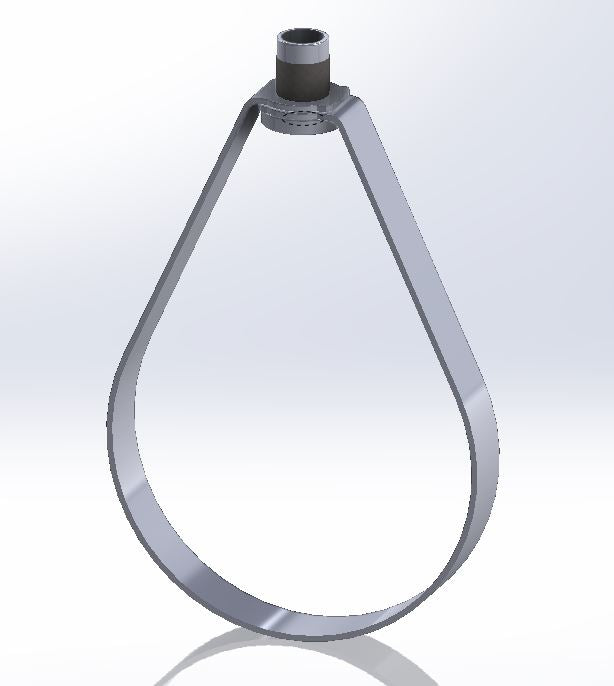

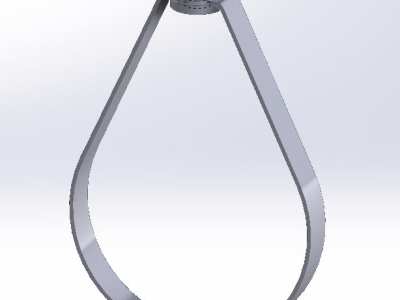

HANGERS 310NF0300 Swivel Ring Hanger Adjustable 3 in

Product Description

The HANGERS 310NF0300 is designed for suspending non-insulated, stationary pipelines. Made from pre-galvanized carbon steel, this adjustable swivel ring hanger offers durability and resistance to corrosion. It is capable of accommodating a three-inch IPS pipe and uses a three-eighths inch rod for support. The swivel ring allows for easy adjustments and movement of the pipe. It meets minimum rod size requirements established by NFPA.

• Adjustable design for customized pipe fitting
• Suitable for sprinkler piping support
• Constructed from corrosion-resistant pre-galvanized steel

Product Highlights

This hanger is optimal for suspending non-insulated pipes and ensures reliable support.

Product Information

Standard Information

• Brand: HANGERS
• MPN: 310NF0300

Technical Specifications

• Type: Swivel Ring Hanger
• Sub Type: Em-Lok Adjustable Swivel Ring Hanger
• Size: 3 inches
• Material: Carbon Steel
• Finish: Pre-Galvanized
• Length: 6.25 inches
• Application: Suspension of Non-Insulated Stationary Pipes
• Knurl Size: 3/8 inches
• Load Rating: 525 pounds
• Pipe Type: IPS
• Product Type: Adjustable
• Style: Emlock
• Threaded Rod Size: 3/8-16
• Approximate Weight: 0.28 pounds
