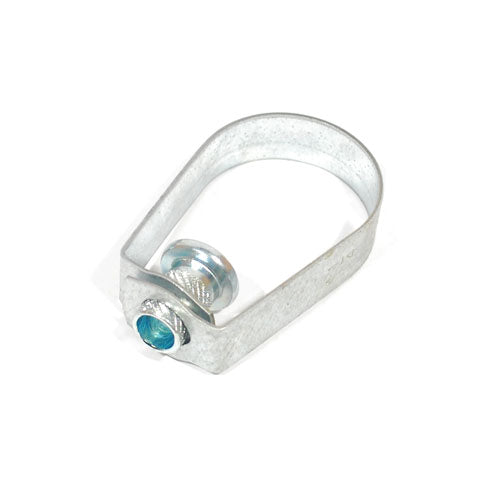

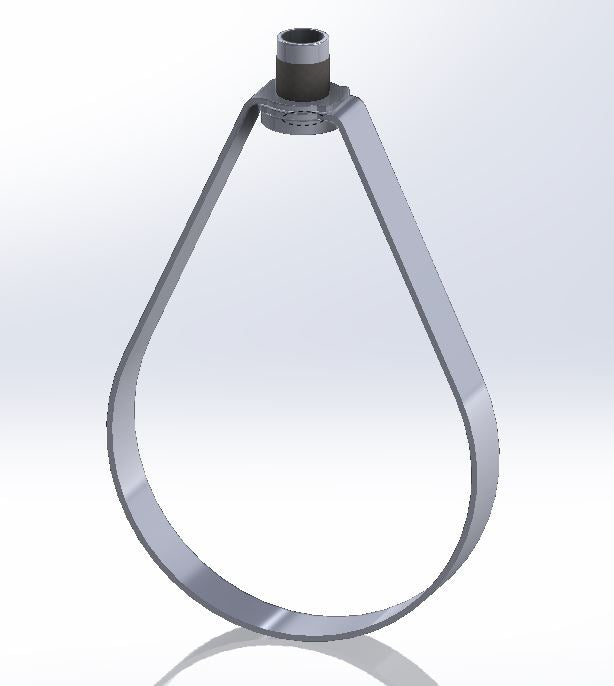

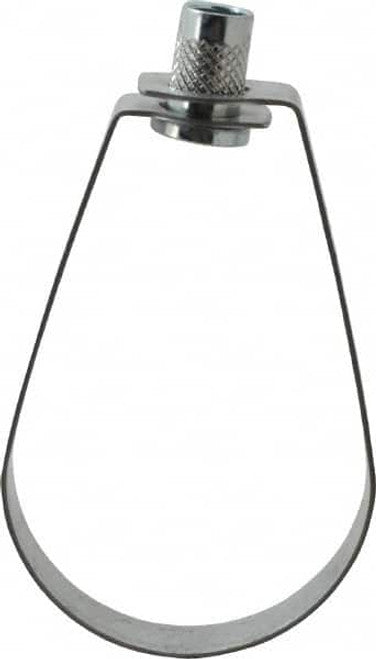

HANGERS 310G0200 Adjustable Swivel Ring Hanger

Product Description

The HANGERS 310G0200 is a reliable adjustable swivel ring hanger for suspending pipe lines. It supports a two-inch pipe size and is compatible with a three-eighth inch rod. Constructed from carbon steel and finished with a galvanized coating to withstand corrosion, it is suitable for various piping systems.

• Designed for suspension of insulated and non-insulated pipe lines.
• Features a swivel ring for easy adjustment and flexibility.
• Suitable for use with two and three-eighth inch outer diameter pipe.

Product Highlights

This hanger offers the durability you need for multiple applications, ensuring that your pipe lines remain stable and secure.

Product Information

Standard Information

• Brand: HANGERS
• MPN: 310G0200

Technical Specifications

• Type: Swivel Ring Hanger
• Sub Type: Em-Lok Adjustable Swivel Ring Hanger
• Pipe Size: 2 inches
• Rod Size: 3/8 inches
• Material: Carbon Steel
• Finish: Pre-Galvanized
• Load Capacity: 600 pounds
• Standards: cULus Listed, FM Approved
• Application: Suspension of Non-Insulated Stationary Pipe Lines
• Knurl Size: 3/8 inches
• Pipe Type: IPS
• Product Type: Adjustable
• Figure: 310G
• Suitable For Use With: 2-3/8 inches OD Pipe
• Domestic/Import: Domestic
• Threaded Rod Size: 3/8-16
• Weight: 0.12 pounds
