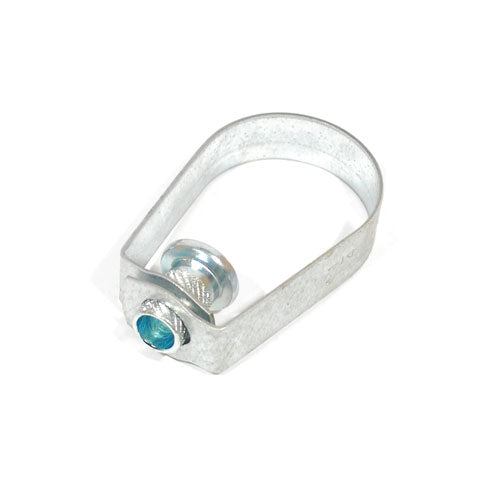

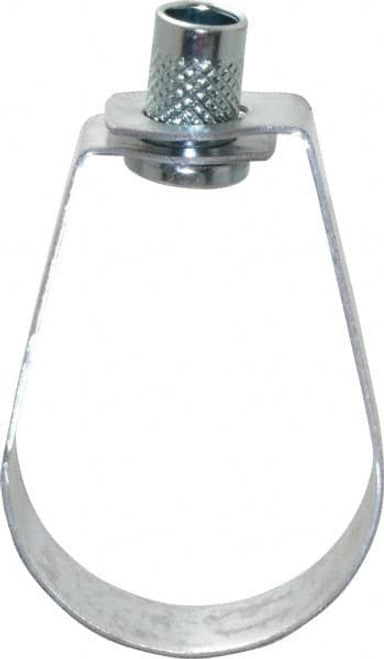

HANGERS 310G0150 Swivel Ring Hanger - Pre-Galvanized Carbon Steel, Adjustable

Product Description

The HANGERS 310G0150 is a durable swivel ring hanger made from pre-galvanized carbon steel. It is designed for suspending non-insulated stationary pipe lines, making it ideal for various industrial and commercial applications.

• Designed for suspension of non-insulated stationary pipe lines.
• Constructed from pre-galvanized carbon steel for enhanced corrosion resistance.
• Adjustable design accommodates 1-1/2 inch IPS pipes.

Product Highlights

This hanger provides strong support and flexibility for different pipe configurations.

Product Information

Standard Information

• MPN: 310G0150
• Product Type: Swivel Ring Hanger

Technical Specifications

• Sub Type: Em-Lok Adjustable Swivel Ring Hanger
• Nominal Pipe Size: 1-1/2
• Material: Carbon Steel
• Finish: Pre-Galvanized
• Length: 3.63 inches
• Application: Suspension of Non-Insulated Stationary Pipe Lines
• Knurl Size: 3/8 inches
• Rod Size: 3/8 inches
• Load Rating: 300 lbs
• Load Capacity: 600 lbs
• Pipe Type: IPS
• Adjustable: Yes
• Standards: cULus Listed, FM Approved
