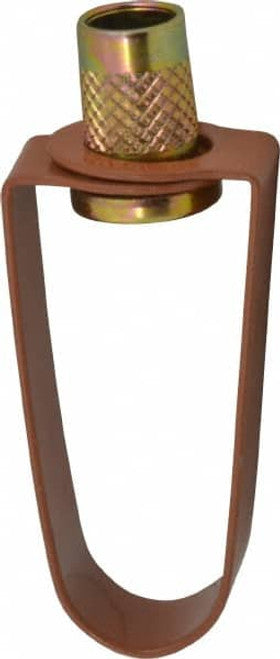

HANGERS 310CTI0050 Adjustable Swivel Ring Hanger

Product Description

The HANGERS 310CTI0050 is an adjustable swivel ring hanger designed for suspending non-insulated, stationary tubing. This hanger is ideal for use with a one half inch pipe and three eighths inch rod sizes. It is built from carbon steel and features a copper epoxy coated finish known as Copper-Gard.

• Adjustable swivel ring design
• Constructed from carbon steel
• Designed for 5/8 inch OD pipe and 1/2 inch copper tubing

Product Highlights

This product provides an effective solution for suspending non-insulated stationary copper lines, making it essential for HVAC, plumbing, and piping applications.

Product Information

Standard Information

• Brand: Hangers
• MPN: 310CTI0050

Technical Specifications

• Type: Adjustable
• Series: FIG 310 Emlok
• Material: Carbon Steel
• Finish: Copper Epoxy Coated (Copper-Gard)
• Load Capacity: 300 lb
• Pipe Size: 1/2 in
• Rod Size: 3/8 in
• Suitable For Use With: 5/8 in OD Pipe and 1/2 in Copper Tubing
• Domestic/Import: Import
• Application: Suspension of Non-Insulated Stationary Tubing
