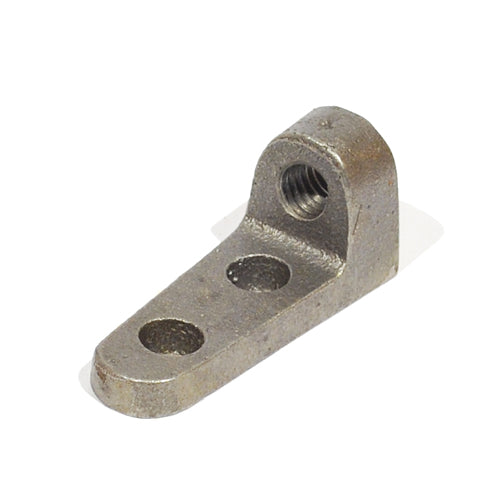

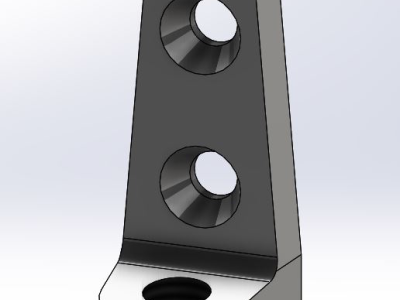

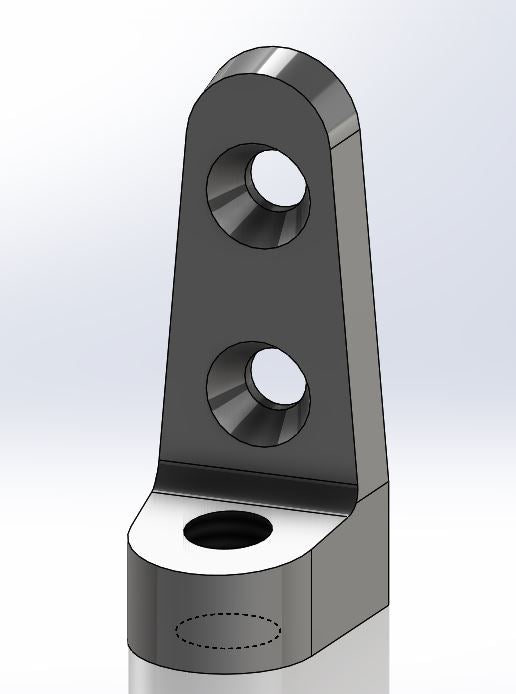

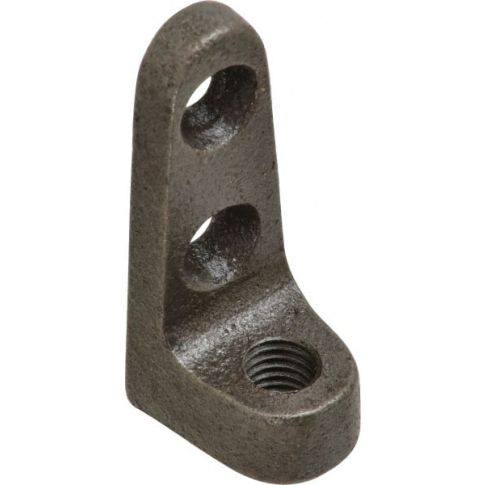

HANGERS 153B0050 Side Beam Connector 1/2

Product Description

The HANGERS 153B0050 is a side beam connector designed for secure mounting on wood beams. This connector utilizes figure fifty-nine drive screws for reliable attachment. A bottom hole is tapped to facilitate rod insertion. Made from malleable iron, it allows flexibility in tight spaces. Its electro-galvanized finish enhances durability, making it ideal for plumbing, construction, and HVAC applications.

• Designed for mounting on wood beams
• Bottom hole tapped for rod insertion
• Electro-galvanized for enhanced durability

Product Highlights

This connector is highly versatile for various trades, ensuring strong performance in different environments.

Product Information

Standard Information

• Type: Side Beam Connector
• Thread: 1/2-13

Technical Specifications

• A (In.): 1/2 - 13
• B (In.): 2 3/4
• C (In.): 3/4
• D (In.): 1 3/16
• Screw Size: #14
• Finish: Electro Galvanized
• Material: Malleable Iron
• Rod Size: 1/2
• Load Capacity (Lb.): 480
• Approximate Weight (pounds): 0.29
