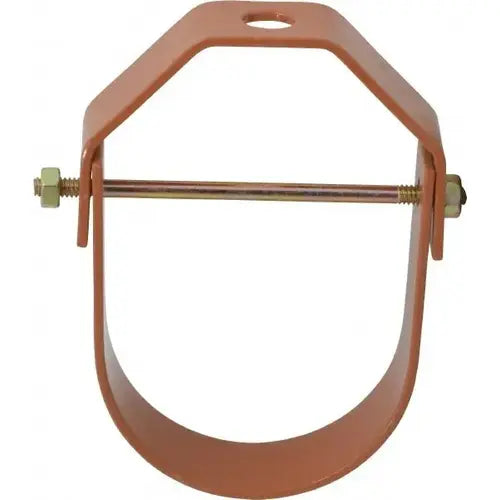

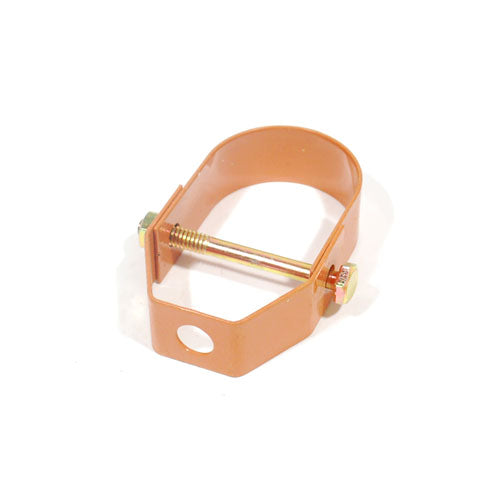

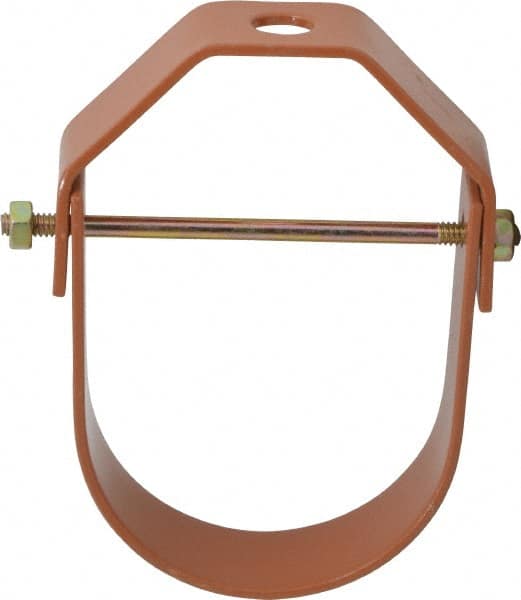

HANGERS 110CTI0300 Clevis Hanger

Product Description

The HANGERS 110CTI0300 is a clevis hanger made from carbon steel for suspending stationary tubing. It offers a copper epoxy or copper-plated finish to prevent corrosion. This hanger can support up to 350 lbs and is compatible with a half-inch rod size. It works well for three-inch pipe or three and one-eighth inch OD pipe.

• Designed for suspension of stationary tubing
• Made from carbon steel
• Corrosion resistance with copper-coated finish

Product Highlights

This product is essential for supporting non-insulated stationary tubing in various plumbing applications.

Product Information

Standard Information

• Manufacturer Part Number: 110CTI0300
• Brand: Hangers

Technical Specifications

• Product Type: Adjustable Clevis Hanger
• Material: Carbon Steel
• Nominal Pipe Size: 3
• Pipe Size: 3 inches
• Rod Size: 1/2 inches
• Load Capacity: 350 lbs
• Finish: Copper Epoxy Coated
• Finish Coating: Copper-Plated
• Application: Suspension of Non-Insulated Stationary Tubing
• Series: FIG 110CTI
• Dimensions: 6-1/8 inches H
• Figure: 110CTI
• Length: 6.13 inches
• Package Weight: 0.71
• Package Quantity: 1
