Product Description

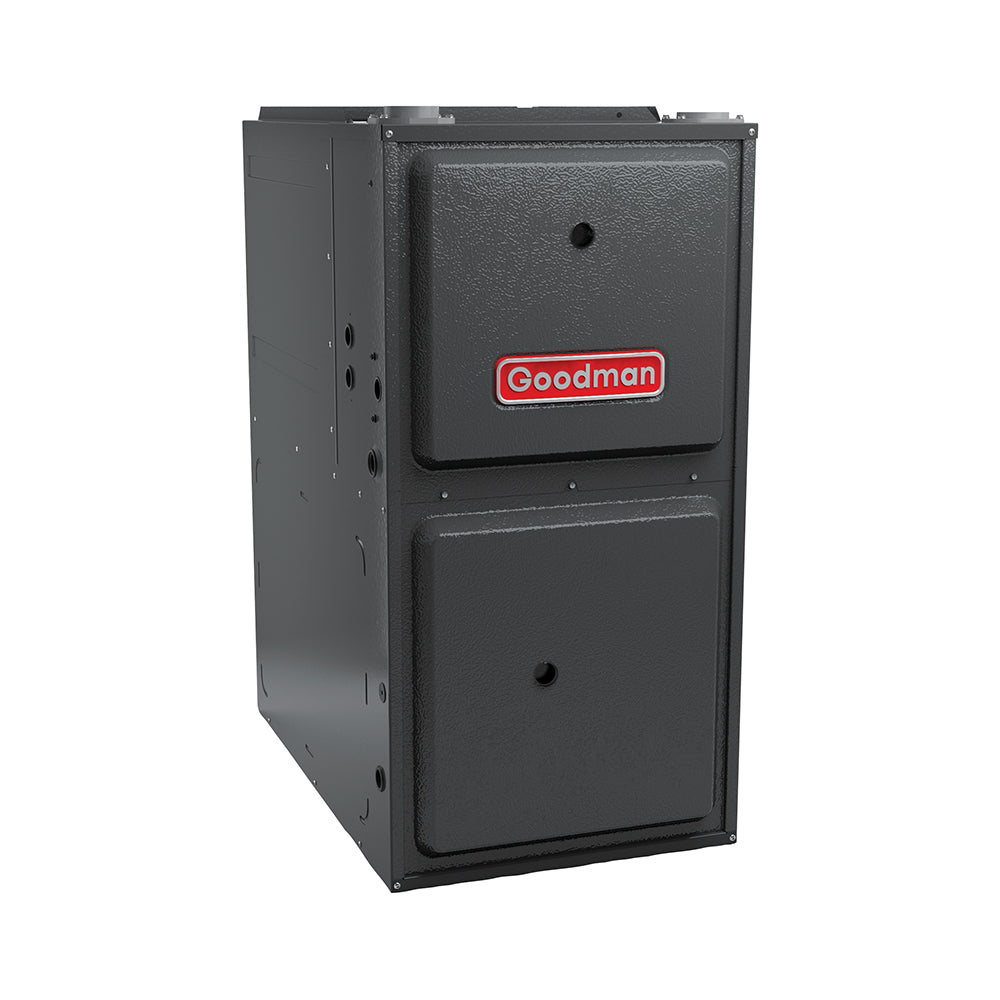

The Goodman GMES960403AN is a gas furnace with a multi-speed ECM, single-stage operation, and an AFUE of 96%. This upflow/horizontal unit features a heavy-duty aluminized-steel tubular heat exchanger and a stainless-steel sloped secondary heat exchanger. It is designed for indoor installation and has a low NOx burner type.
- Equipped with a multi-speed ECM blower motor and silicon nitride igniter.
- Features a self-diagnostic control board with constant memory.
- Certified for direct vent (2-pipe) or non-direct vent (1 pipe) and complies with ETL North American safety standards.
Product Highlights
The Goodman GMES960403AN gas furnace provides efficient heating with versatile installation options and reliable performance.
Product Information
Standard Information
-
Brand: GOODMAN
-
Manufacturer Part Number: GMES960403AN
-
Country of Origin: USA
Technical Specifications
-
AFUE: 96
-
Class: Gas Furnace
-
Family: GMES96
-
Category: Gas Furnace
-
Unit Type: Indoor
-
Unit Depth: 29 in
-
Unit Width: 14 in
-
Power Phase: 1 Ph
-
Unit Height: 34-1/2 in
-
Unit Weight: 106
-
Min. Circuit: 10.3 A
-
Power Voltage: 115 V AC
-
NOX Burner Type: Low NOx
-
Power Frequency: 60 Hz
-
Model Efficiency: 0.96
-
Motor Speed Type: Multi Speed ECM
-
High-Fire Input Capacity: 40000 Btu/hr
-
Airflow Rate High Heating: 333 ft³/min
-
High-Fire Output Capacity: 38440
-
Installation Type: Ducted
-
Fuel Type: Gas
-
Installation Configuration: Upflow/Horizontal
-
Heat Exchanger Type: Gas
-
Gas Valve Type: Single Stage
-
Max Overcurrent Protection: 15.0 A
-
Temperature Rise Range High Fire: 25-55 °F
-
Air Flow Rate (High) - Heating: 1191 ft³/min
-
Blower Motor RPM: 1200 r/min
-
Dimensions - (Blower Diameter): 11 in
-
Dimensions - (Blower Width): 6 in
-
Filter Quantity: 1.0
-
Filter Size - (Min): 14 x 25
-
Minimum Clearances to Combustible Materials: 1 ft
-
Vent Diameter: 2 in;3 in
-
Gas Furnace BTU: 40000
-
Gas Furnace Efficiency: 96%
-
Gas Valve: Single-Stage
-
Indoor Fan Blower Motor: Multi-speed blower
-
BTU (btu/hr): 40000
-
Phase: Single Phase
-
Valve Type: Single Stage
-
BTU Heat Rating: 40000
-
CFM Rating: 1200 cfm
-
HP Rating: 1/2 hp at 1075 rpm
-
Input BTU Rating: 40000 Btu/hr
-
Fuse Rating: 15 A
-
Motor Type: Upflow/Horizontal
-
Connection Size: 1/2 in FPT
-
Flow Rate: 1200 cfm
-
Furnace Position: Upflow/Horizontal
-
Ignition Type: Silicon Nitride
-
Input Capacity: 40000 Btu/hr
-
Low NOX: Yes
-
Motor HP: 1/2 hp
-
Motor RPM: 1075 rpm
-
Series: GMES96
-
Type: 1-Stage
-
Voltage Rating: 115 V AC
-
Heating BTU: 40000
-
High Fire Input: 40000 BTU
-
Maximum Air Flow: 1200 CFM
-
Low NOx Emissions: Yes
-
Minimum Circuit Ampacity: 9.3 Amps
-
Recommended Breaker Size: 15 Amps
-
Flue Connection Size: 2 or 3 Inches
-
Cabinet Width: 14 Inches
-
Product Height: 34 1/2 Inches
-
Product Width: 14 Inches
-
Product Depth: 29 Inches
-
Product Weight: 106 Pounds
