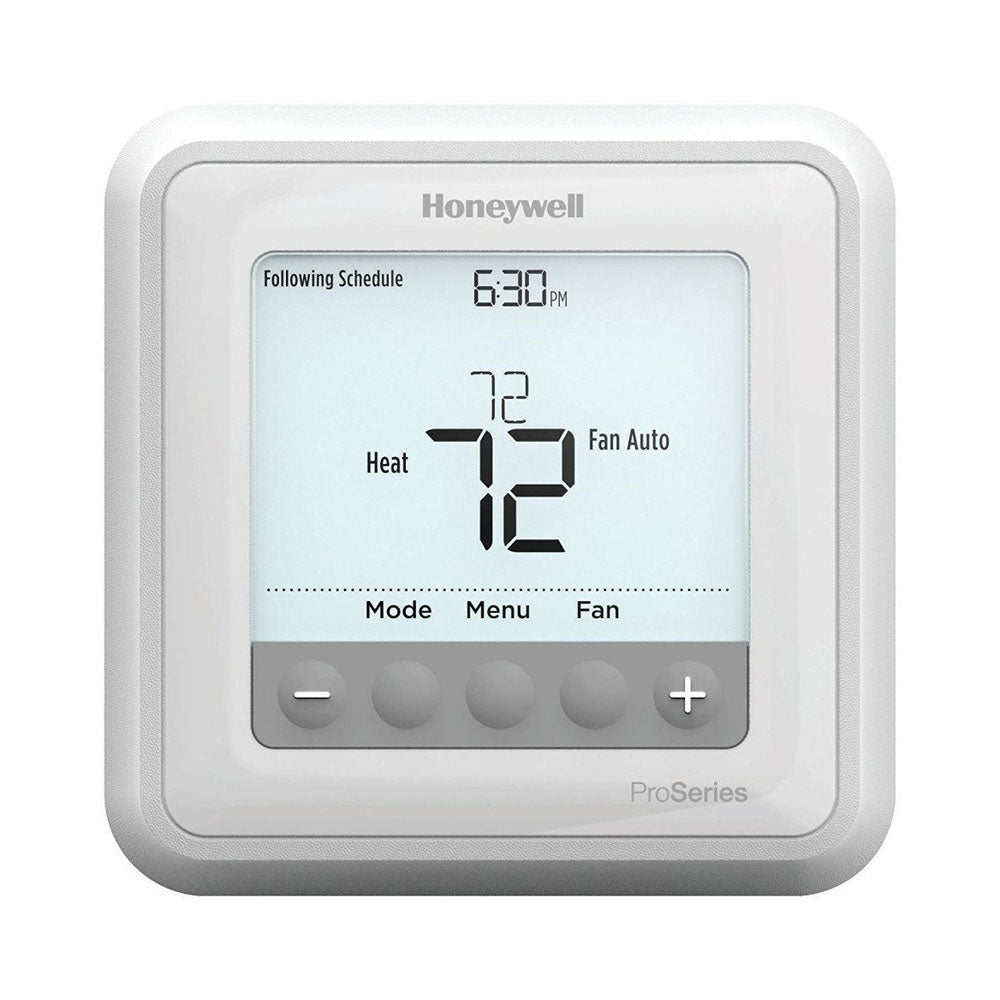

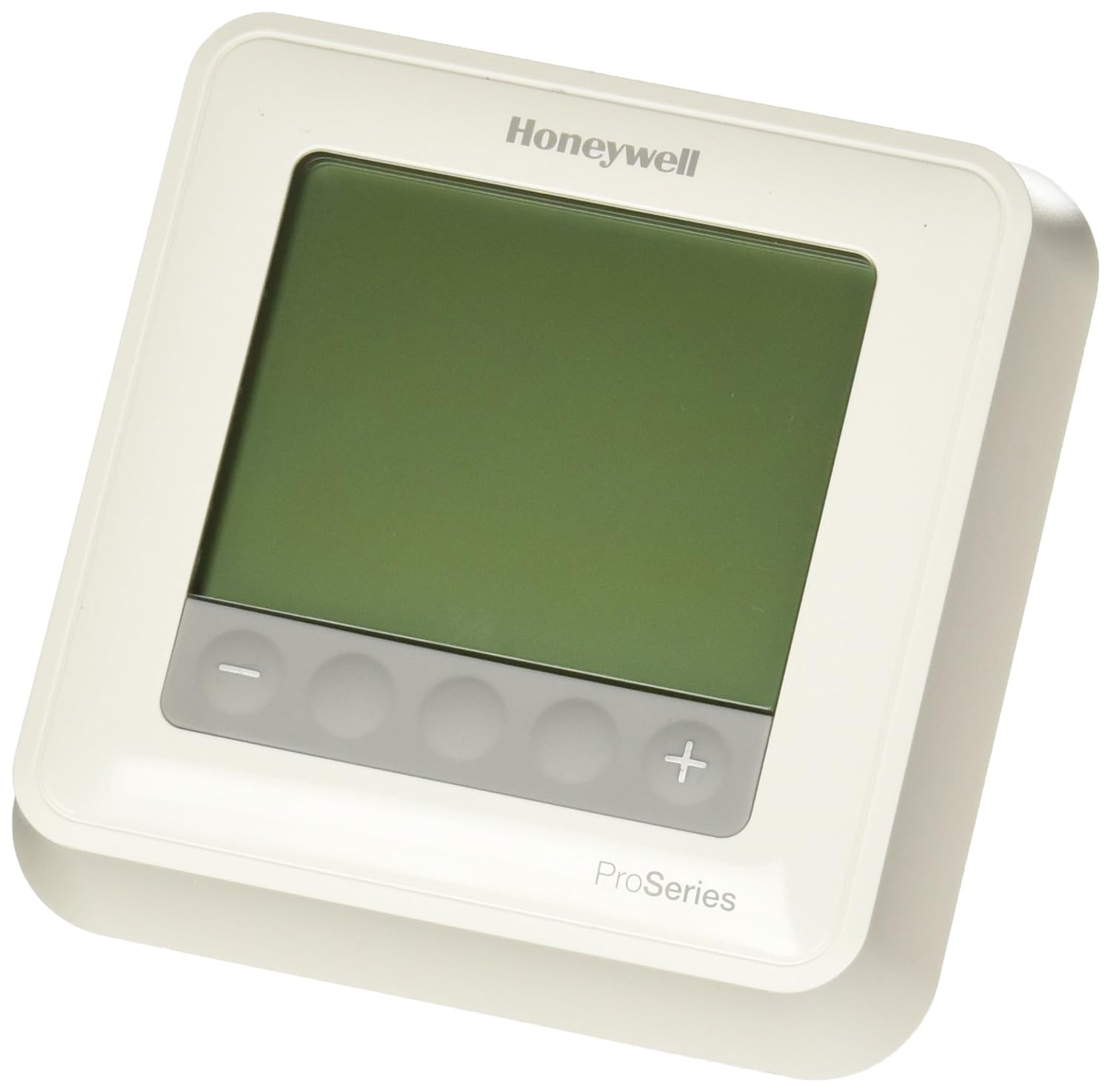

Honeywell TH6220U2000/U T6 Pro Programmable Thermostat 2 Heat/1 Cool Heat Pump or 2 Heat/2 Cool Conventional

Product Description

The Honeywell TH6220U2000/U T6 Pro Programmable Thermostat is designed for versatile heating and cooling control. Compatible with both heat pump and conventional systems, this thermostat is perfect for a variety of residential HVAC setups.

• Supports 2 Heat / 1 Cool heat pump or 2 Heat / 2 Cool conventional systems.
• Features a large, backlit LED display for easy reading.
• Offers multiple programming options including 7, 5-2, 5-1-1, or non-programmable settings.

Product Highlights

Optimized for easy installation and user-friendly functionality, the T6 Pro is equipped with a standard footprint and simple interface. It includes a UWP mounting system and optional dual fuel capabilities. This thermostat is also compatible with indoor and outdoor sensors.

Product Information

Standard Information

• Brand: Honeywell
• MPN: TH6220U2000/U
• Color: White

Technical Specifications

• Accuracy: Plus/Minus 4 deg F
• Amperage Rating: 0.02 - 1 A Heat, 0.02 - 0.05 A Fan
• Changeover: Auto/Manual
• Dimension: 4-1/16 in L x 4-1/16 in W x 1-3/32 in D
• Display Type: 5.44 sq-in Large LED
• Humidity Rating: 5 - 90% Relative Humidity, Non-Condensing
• Item Name: Programmable Thermostat
• Model: T6 Pro
• Mounting: UWP
• Power Source: Battery/Hardwired
• Programmability: 7, 5-1-1, 5 - 2 days or Non-programmable
• Series: TH6220U
• Setting Temperature: 40 - 90 deg F Heat, 50 - 99 deg F Cool
• Stages: 2 Heat/2 Cool Conventional, 2 Heat/1 Cool Heat Pump
• Switch Position: HEAT-OFF-COOL-AUTO-EMERGENCY HEAT (System), AUTO-ON-CIRC-FOLLOW SCHEDULE (Fan)
• Switch Type: Relay
• Temperature Rating: 37 - 102 deg F Operating, -20 to 120 deg F Storage
• Voltage Rating: 20 - 30 VAC
