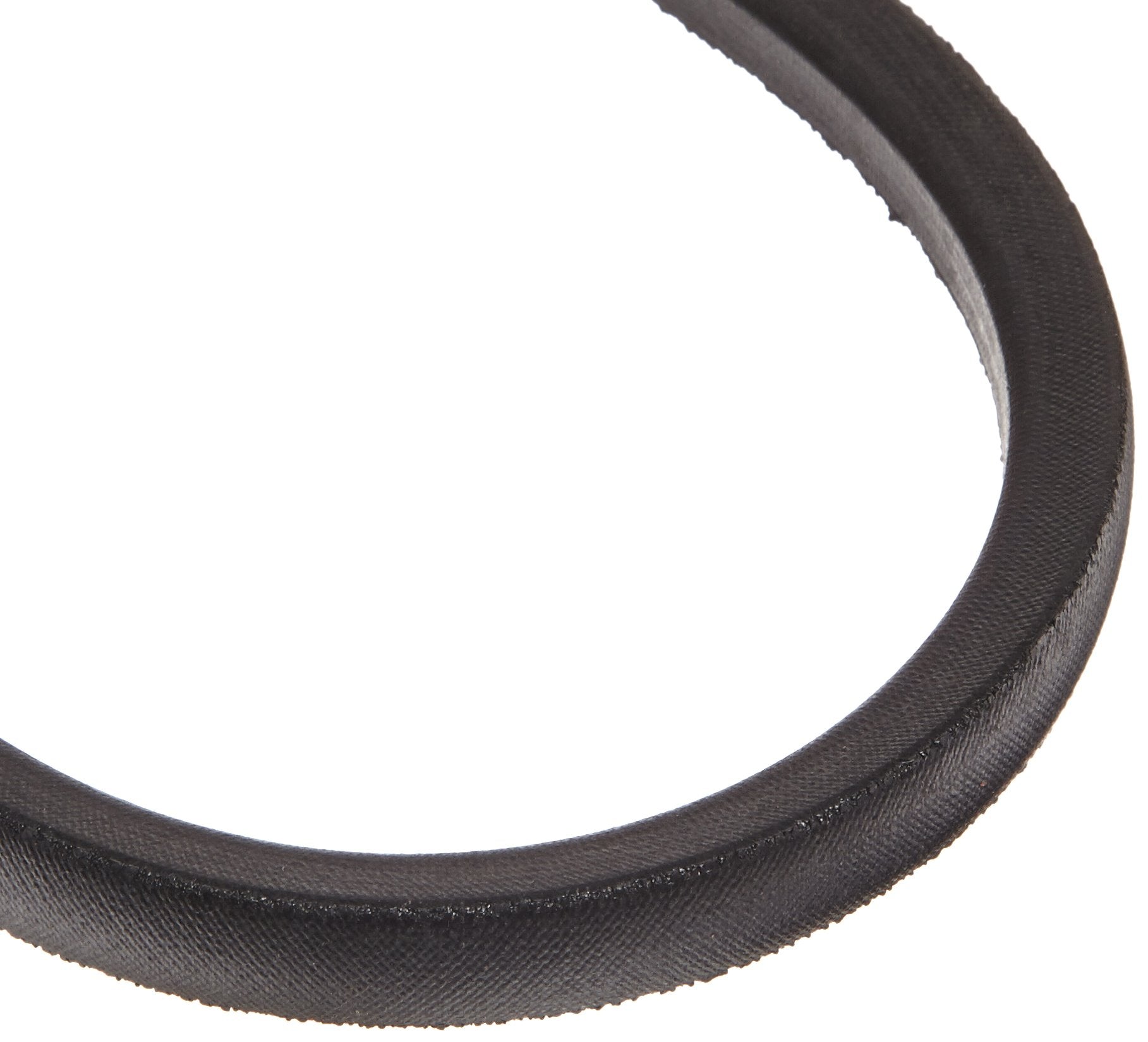

Gates A52 Hi-Power II Belt

Product Description

The Gates A52 Hi-Power II Belt is a versatile power transmission V-belt designed for various industrial applications. This belt, model A52, features an EPDM rubber construction for enhanced resistance against weather, oils, water, and certain solvents. Its cords are robustly bonded to the belt body, ensuring equal load distribution and minimizing bending stress.

• EPDM construction for durability
• Even load distribution
• Meets RMA and ISO standards

Product Highlights

The concave sidewalls of the Gates A52 belt provide excellent support for the cords and ensure full contact with the sheave groove, resulting in even wear. Part of Gates' V80 matching system, this belt guarantees precise matching for multi-belt drives, which improves load distribution and overall wear. It meets RMA standards for oil and heat resistance along with static conductivity, making it suitable for various industrial applications including, but not limited to, V-flat drives.

Product Information

Standard Information

• Item Number: A52
• Brand: Gates
• UPC: 072053201864
• Dimensions: 1/2 inch x 11/32 inch x 54 inches

Technical Specifications

• Material: EPDM Rubber
• Belt Size: A52/4L540
• Top Width: 1/2 inch
• Thickness: 11/32 inch
• Length: 54 inches
• Weight: 2 lbs
• Resistance Properties: Oil-Resistant, Heat-Resistant
• Applications: HVAC, Refrigeration, Industrial
