Ewc Controls ZMX2 Expansion Module 2 Zones

Product Description

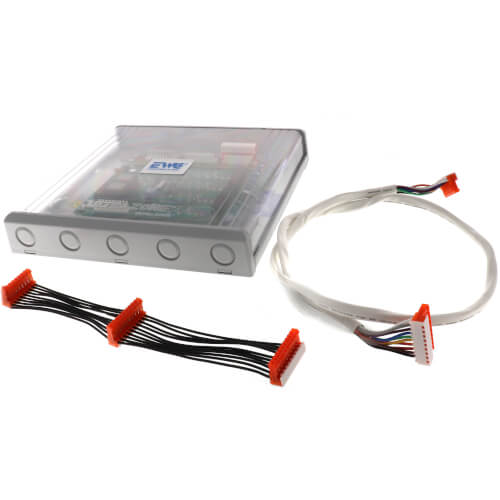

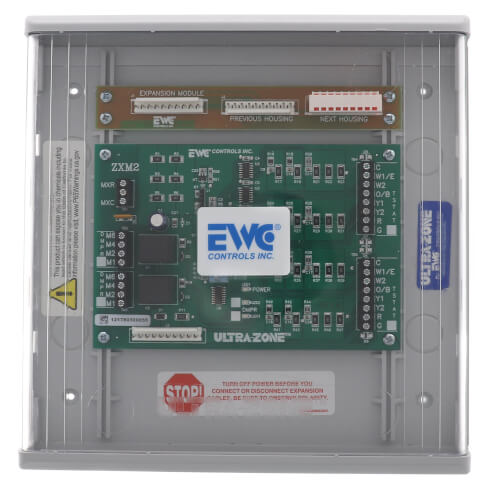

The EWC CONTROLS ZMX2 Expansion Module adds zones to the UZC4 Zone Control System, allowing up to 16 additional zones for a total of 20. It features automatic changeover from any thermostat and is compatible with most off-the-shelf 1 or 2 stage conventional heat/cool or heat pump thermostats. The module operates on 24VAC power and includes an LED display.

• 2 Single & Multistage Heat/Cool/Heat Pump
• 24V
• Adds up to 16 zones with 1 to 8 expansion modules on a UZC4 control system.

Product Highlights

The ZMX2 expansion module enhances the UZC4 zoning system with additional zone capacity and compatibility with various thermostats.

Product Information

Standard Information

• Brand: EWC CONTROLS
• Manufacturer Part Number: ZMX2

Technical Specifications

• Product Type: Expansion Module
• Number of Zones: 2
• Stages: Single & Multistage Heat/Cool/Heat Pump
• Features: LED Display
• Changeover: Auto
• Voltage: 24V
• Input Voltage: 19-30 VAC (60 Hz)
• Operating Temp Range: -20°F - 160°F
• Humidity Range: 0 to 95% RH (Non Condensing)
