Ewc Controls URD9 URD Motorized Damper 9 inches

Product Description

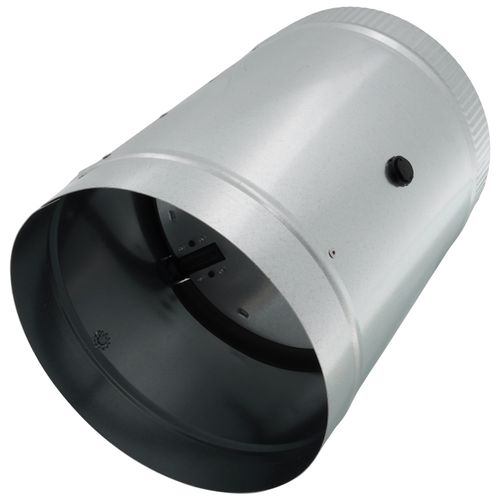

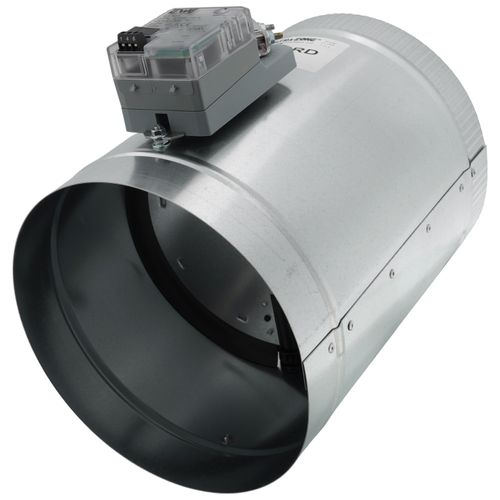

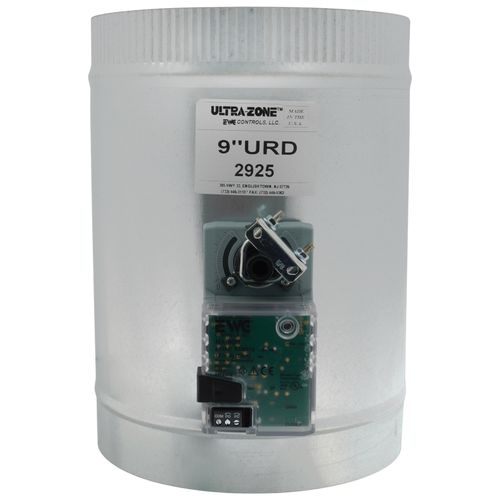

The EWC CONTROLS URD9 is a single blade round damper with a two-position, 24 volt motor. The motor is powered both ways, open and closed, and features LEDs that indicate the motor's position with red for closed and green for open. This damper features a double layered blade design with an integrated Poron sealing gasket.

• Double layered blade design with an integrated Poron sealing gasket
• Easy to install and wire up
• Nylon bearings and ThermoTuff drive shafts ensure smooth, quiet operation

Product Highlights

The URD series dampers are easy to install, easy to wire up. Features a heavy 24 gauge galvanized steel construction.

Product Information

Standard Information

• Brand: EWC CONTROLS
• Manufacturer Part Number: URD9

Technical Specifications

• Product Type: URD Motorized Damper
• Size: 9"
• Application: Air Quality
• Shape: Round
• Wires to Motor: 3
• Series: URD Series
• Voltage Rating: 24 V
• Frequency Rating: 50/60 Hz
• Power Rating: 1 W
• VA Rating: 1.5 VA
• Blade Type: Double Layered
• Gauge: 24 ga
• Material: Steel
• Finish: Galvanized
• Motor Type: Power Closed/Power Open
• Flow Rate: 310 cfm
• Timing Range: 35 s
• Torque Rating: 18 in-lb
• Pressure Rating: 1.5 in-WC
• Brand: EWC Controls
• Motorized: Yes
• Spring Return: Non-Spring Return
• Type: Round Dampers
