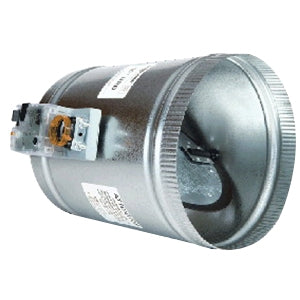

EWC CONTROLS URD-12 Zone Damper 12 Inch Round 24VAC 2-Position 3-Wire

Product Description

The EWC Controls URD-12 is a motorized zone damper designed for efficient and reliable HVAC airflow control. Manufactured from high-quality 24 gauge galvanized steel, this damper features a double-layer blade with an integrated Poron sealing gasket for optimal performance and durability. Its robust construction ensures long-lasting, maintenance-free operation.

• Easy installation and wiring with a 5-year warranty
• Smooth and quiet operation due to nylon bearings and ThermoTuff drive shafts
• Operates effectively up to 1.5 inches WC static pressures

Product Highlights

The URD-12 comes equipped with the UL-listed MA-ND5 actuator, offering a three-wire power open/close functionality with 18 in-lb of torque. It includes a wiring terminal block and a NEMA 1 rated housing, enhancing its overall functionality and ease of use.

Product Information

Standard Information

• Brand: EWC Controls
• Size: 12 inches

Technical Specifications

• Material: Galvanized Steel
• Type: Power Open and Power Close Motorized Damper
• CFM Rating: 650 CFM
• Voltage: 24 VAC
• Pressure Rating: 1.5 in-WG
• Temperature Rating: 185 degrees Fahrenheit
• Phase: 1 ph
• Standards/Certifications: UL listed
