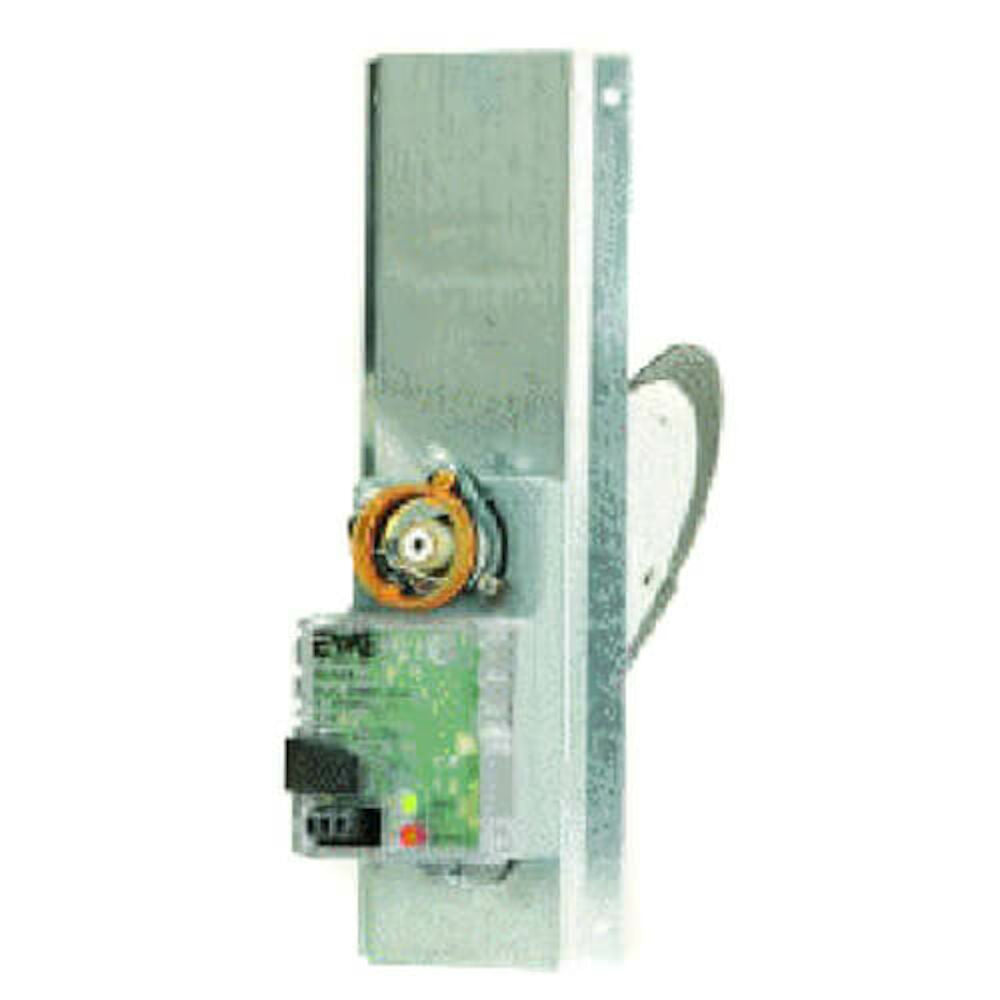

EWC Controls SID-6 6 Motorized Slip-In Damper

Product Description

The EWC Controls SID-6 is a six-inch round motorized damper, suitable for both retrofit and new construction projects. This unit features a slip-in design that facilitates installation into existing round ducts with a one and one-quarter inch slot. The double-layered damper blade includes an integrated cellular foam sealing gasket, ensuring effective airflow management.

• Operates on 24 VAC with a power-open and power-close motor.
• Visual indication of position with integrated LEDs for easy monitoring.
• Adjustable end-stops allow for precise position control.

Product Highlights

This damper is designed to control airflow in HVAC systems efficiently. It is ideal for quick installations in existing ductwork, and its LEDs provide immediate feedback on the damper position.

Product Information

Standard Information

• Manufacturer: EWC Controls
• Voltage Rating: 24 VAC

Technical Specifications

• Actuator: 1.5VA
• Zone Panel Compatibility: Up to 20 SIDs controlled from a single zone panel with a 40VA transformer
• Round Duct Size: six inches
• Static Pressure: Up to 1 inch w.c.
• Type: Retrofit
• Weight: 3.9 lb.
• Dimensions: 14 inches x 7 inches x 14 inches
