EWC CONTROLS ND8x24 Motorized Zone Damper

Product Description

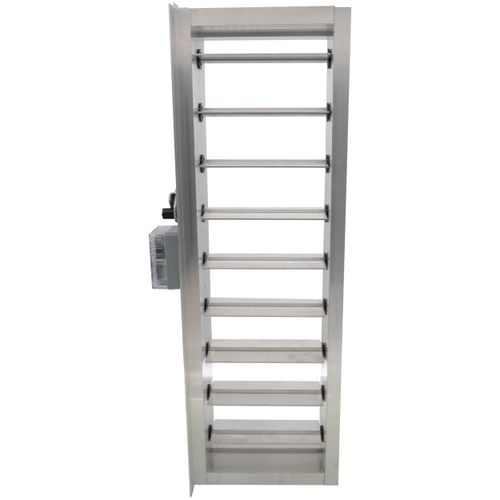

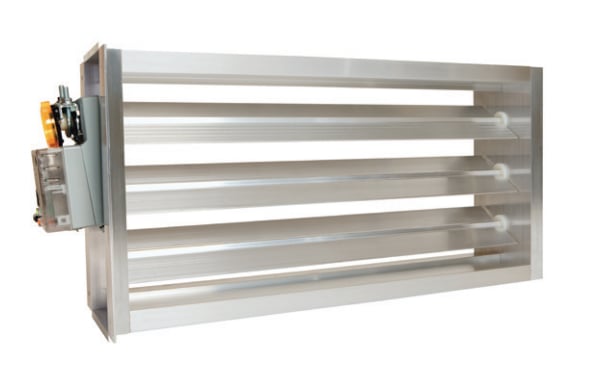

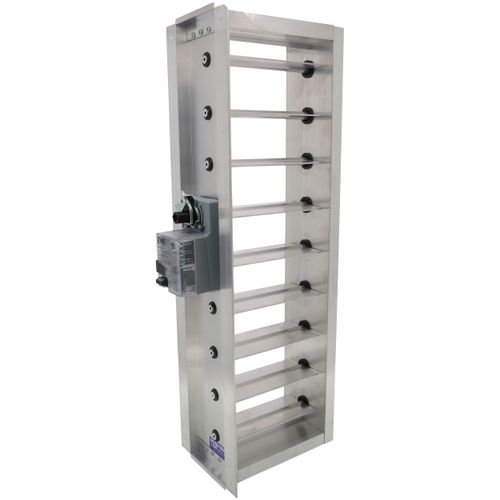

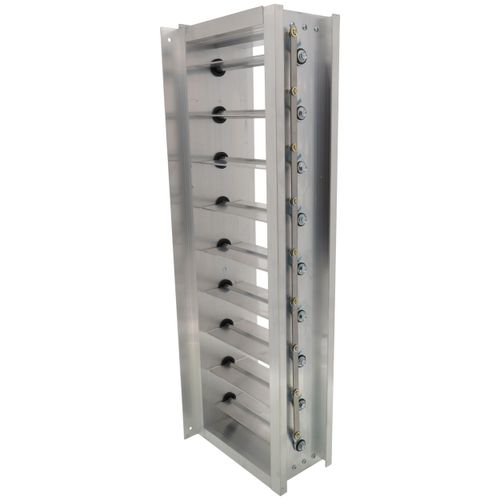

The EWC CONTROLS ND8x24 is a motorized zone damper tailored for HVAC zoning systems. This rectangular damper features overlapping parallel blades that help minimize leakage. It operates with a three-wire power open and power close motor actuator, making it reliable in climate control applications. The motor is positioned on the bottom of the unit, facilitating easy installation. An LED display offers a clear visual indication of the damper's status. The construction includes a heavy-duty frame and nylon bushings, ensuring quieter operation.

• Features a 3-wire power open/power close motor actuator.
• Equipped with an LED display for visual indication of damper operation.
• Constructed with a heavy-duty frame and nylon bushings.

Product Highlights

This damper supports improved air quality control in various systems, providing efficient airflow management.

Product Information

Standard Information

• Brand: EWC CONTROLS
• MPN: ND8x24

Technical Specifications

• Damper Type: Zone
• Size: 8 x 24 inches
• Shape: Rectangular
• Voltage: 24 VAC/DC
• Power Rating: 1 Watt
• Torque Rating: 18 Inch-Pound
• Material: Extruded Aluminum, Glass Filled Nylon (Bearing)
• Enclosure: NEMA 1
• Mounting Type: Side
• Ambient Temperature Range: -20°F to 160°F (-28.89°C to 71.11°C)
• Maximum Temperature: 185°F (85°C)
• Application: Air Quality
• Features: LED Light
• Wires to Motor: 3
• Motor Mount: Bottom
• Pressure Rating: 1.5 Inch WC
• Material Thickness: 0.8 Inch
• Approvals: UL Listed; UL Recognized
• Cycle/Hertz: 50/60 Hz
