EWC Controls ND8x20 Motorized Zone Damper 24VAC 8 x 20

Product Description

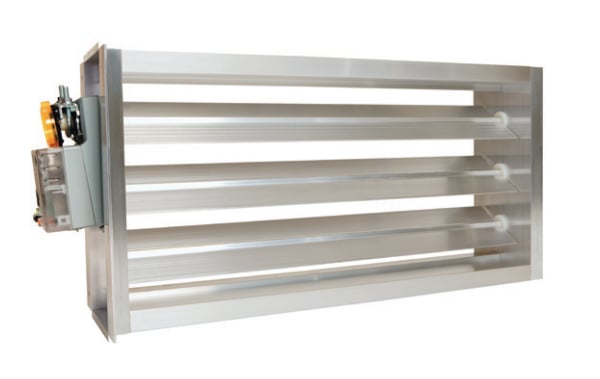

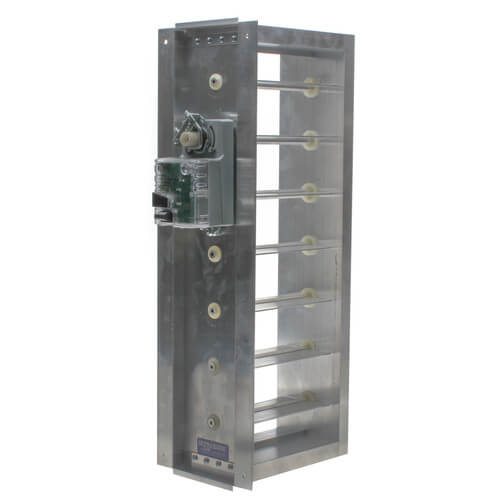

The EWC Controls ND8x20 is a motorized zone damper that assists in regulating air flow within HVAC systems. It utilizes a robust frame made from aluminum with an overlapping parallel blade design. The damper operates with a 24VAC power supply, featuring a three-wire motor that allows for power open and power close operations. LED indicators display the position of the damper, making it easy to monitor its status.

• Features a 24VAC 3-wire motor.
• Includes LED indicators for damper position.
• Constructed with a heavy-duty aluminum frame.

Product Highlights

This product is suitable for applications focused on air quality control in residential and commercial HVAC setups.

Product Information

Standard Information

• Brand: EWC Controls
• Manufacturer: EWC Controls

Technical Specifications

• MPN: ND8x20
• Product Type: Motorized Zone Damper
• Size: 8 x 20
• Shape: Rectangular
• Voltage: 24 VAC
• Wires to Motor: 3
• Motor Mount: Bottom
• Application: Air Quality
• Operating Temperature Range: -20°F to 160°F
• Maximum Temperature: 185°F
• Amperage: 1.5
• Construction: Aluminum
• Frequency: 50/60 Hz
• Mounting Type: Face plate
• Weight: 6.60 lb
• Dimensions (L x W x H): 14.00 in x 7.00 in x 22.00 in
• Motor Torque: 18 in-lbs
• Enclosure Rating: NEMA 1
• Certifications: UL Listed; UL Recognized
