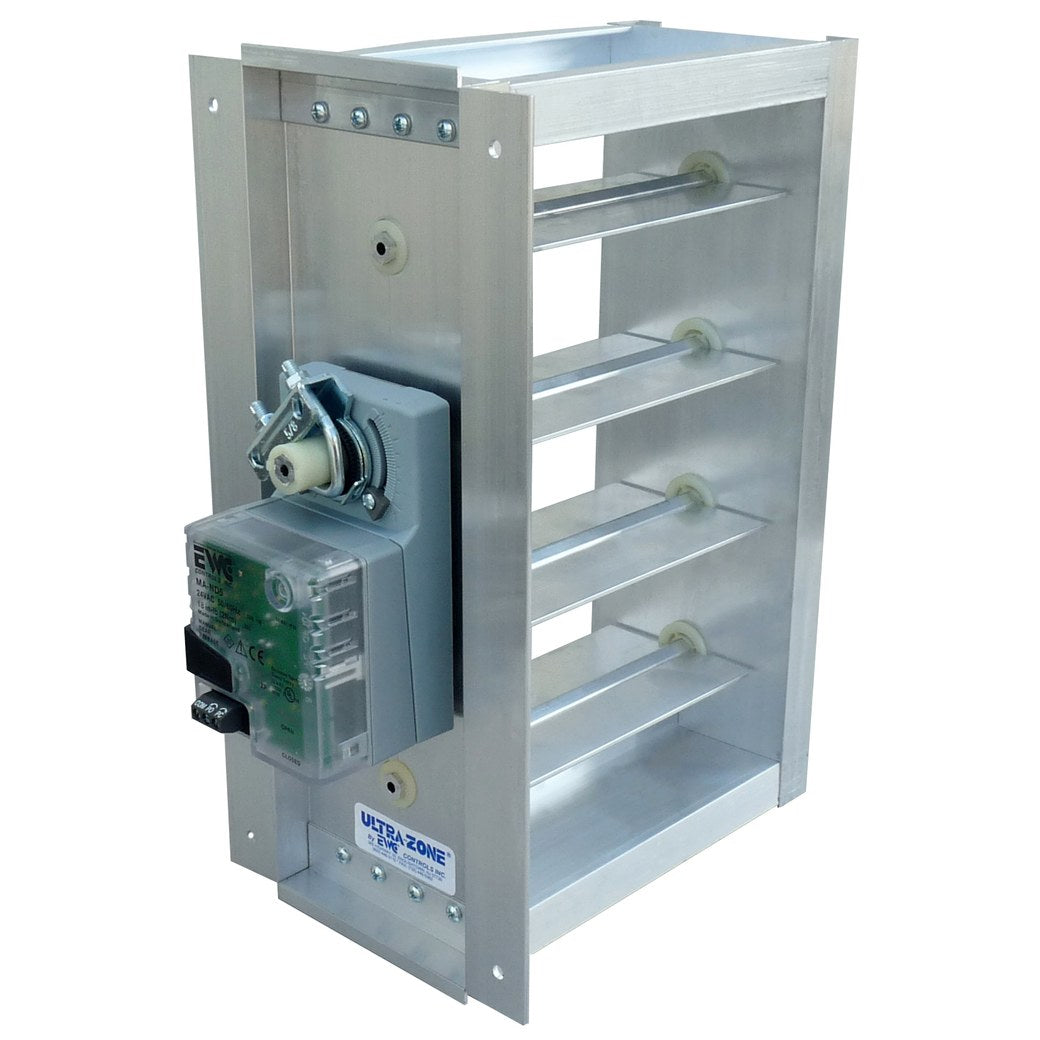

EWC Controls ND8x12 Zone Damper Side Mount Motor 12 x 8

Product Description

The EWC Controls ND8x12 is a zone damper side mount motor measuring twelve inches by eight inches. This automatic damper is made from heavy duty zero point eighty extruded aluminum, ensuring durability.

• Nylon bearings provide quiet operation.
• Overlapping parallel blade design minimizes leakage.
• Meets static pressure requirements up to one point five inches water column.

Product Highlights

This product features a UL listed motor actuator that operates at twenty-four VAC with three wires for power open and power close functionality. It has an actuator capable of delivering eighteen pounds of torque, which is considered superior to low torque spring type motors. The NEMA one rated actuator housing ensures safety and reliability.

Product Information

Standard Information

• Brand: EWC Controls
• Part Number: ND8x12

Technical Specifications

• Type: Automatic Damper
• Voltage: 24 VAC
• Length: 8 inches
• Width: 12 inches
