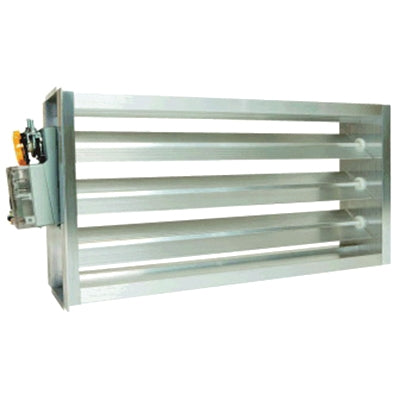

EWC Controls ND14x8 EWC Controls ND 14X8 14 x 8 in Motorized Zone Damper with MA-ND4 Actuator

Product Description

The EWC Controls ND14x8 is a motorized zone damper sized at fourteen inches by eight inches. This product features heavy-duty extruded aluminum construction for durability. It is designed for easy installation, making it ideal for both installers and homeowners.

• Quiet operation due to nylon bushings
• Effective zone control with overlapping blades
• UL listed motor for safety and reliability

Product Highlights

This damper ensures efficient airflow control with a leak-proof rating of ninety-seven percent. Its robust design includes a manual gear release and LED indicators for easy diagnostics.

Product Information

Standard Information

• Brand: EWC Controls
• Part Number: ND14.8

Technical Specifications

• Amperage Rating: 1.5 A
• Blade Type: Parallel
• Dimension: 13-3/16 in L x 6 in W x 7-3/16 in H
• Item Name: Zone Damper with MA-ND4 Actuator
• Material: Extruded Aluminum
• Motor Specifications: 24 VAC
• Motor Type: Power Open and Power Close
• Mounting: Bottom
• Phase: 1 ph
• Pressure Rating: 1.5 in-WG
• Series: ND
• Shape: Rectangle
• Size: 14 x 8 in
• Sub Brand: Ultra-Zone
• Temperature Rating: 185 deg F
• Type: Motorized
