EWC Controls ND12x8 EWC Controls ND 12X8 12 x 8 in

Product Description

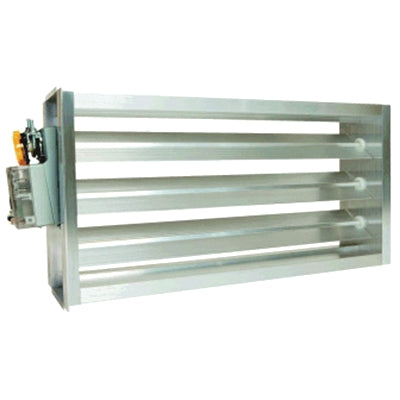

The EWC Controls ND12x8 is a motorized zone damper designed for HVAC applications. This damper measures twelve by eight inches and features an MA-ND4 actuator. It is suitable for both installer and homeowner needs.

• Easy installation with a sturdy frame
• LED display for operational checks
• 97% leak-proof rating with overlapping blades

Product Highlights

The ND12x8 damper ensures accurate zone control and operates quietly due to nylon bushings. Featuring a high torque motor, it is built to perform effectively in diverse settings.

Product Information

Standard Information

• Brand: EWC Controls
• Part Number: ND12.8

Technical Specifications

• Amperage Rating: 1.5 A
• Blade Type: Parallel
• Dimensions: 11-3/16 inches L x 6 inches W x 7-3/16 inches H
• Item Name: Zone Damper with MA-ND4 Actuator
• Material: Extruded Aluminum
• Motor Specifications: 24 VAC
• Motor Type: Power Open and Power Close
• Mounting: Bottom
• Phase: 1 ph
• Pressure Rating: 1.5 in-WG
• Series: ND
• Shape: Rectangle
• Size: 12 x 8 in
• Sub Brand: Ultra-Zone
• Temperature Rating: 185 deg F
• Type: Motorized
