EWC Controls ND10x12 Rectangular Motorized Zone Damper

Product Description

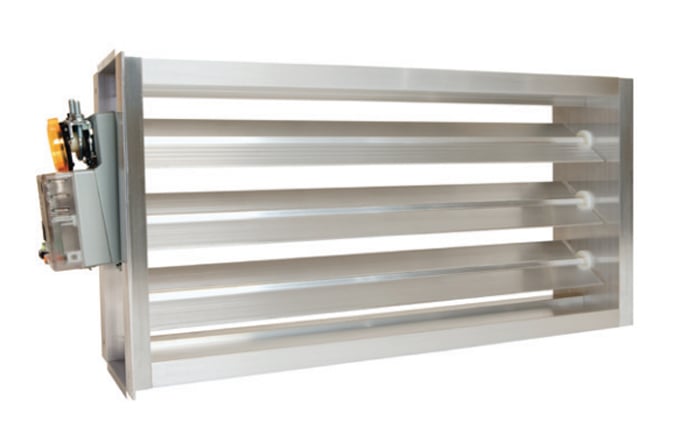

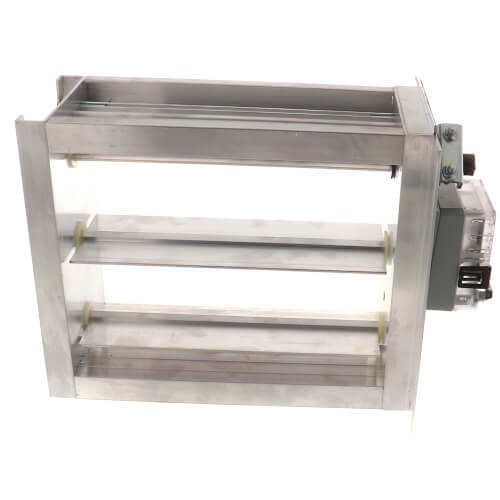

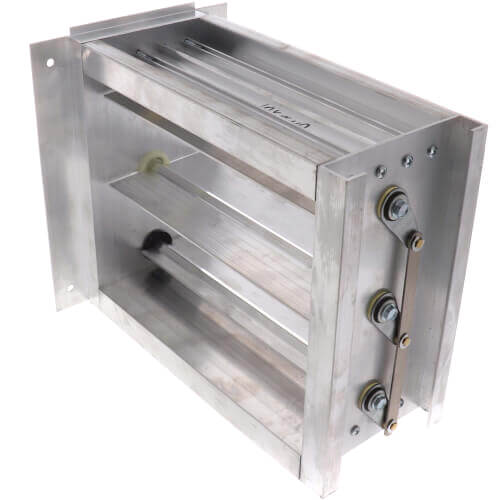

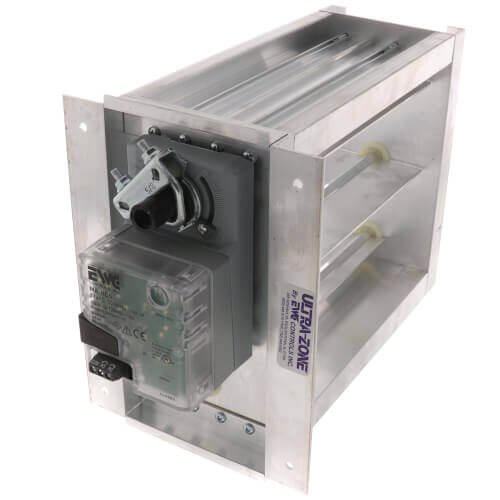

The EWC Controls ND10x12 is a rectangular motorized zone damper designed for effective air quality management. Measuring ten inches by twelve inches, this damper has the motor mounted on the twelve-inch side, optimizing space and installation ease. It features a 24V motor that operates on a three-wire connection, suitable for various HVAC applications.

• Designed for air quality applications.
• Features flared edges for improved airflow.
• UL listed motor actuator with integrated wiring terminal block.

Product Highlights

This motorized zone damper is essential for controlling airflow and temperature within your space.

Product Information

Standard Information

• Brand: EWC Controls
• MPN: ND10x12

Technical Specifications

• Shape: Rectangular
• Size: 10 x 12 inches
• Product Type: Motorized Zone Damper
• Voltage: 24 VAC
• Wires to Motor: 3
• Motor Mount: Bottom
• Application: Air Quality
• Frequency: 50/60 Hz
• Amperage: 1.5 A
• Material: Aluminum
• Temperature Range: -20 to 160 F
• Standards: UL
• Spring Return: Non-Spring Return
