Ewc Controls ND-8X14-MA15S ND Motorized Damper 8 inches x 14 inches

Product Description

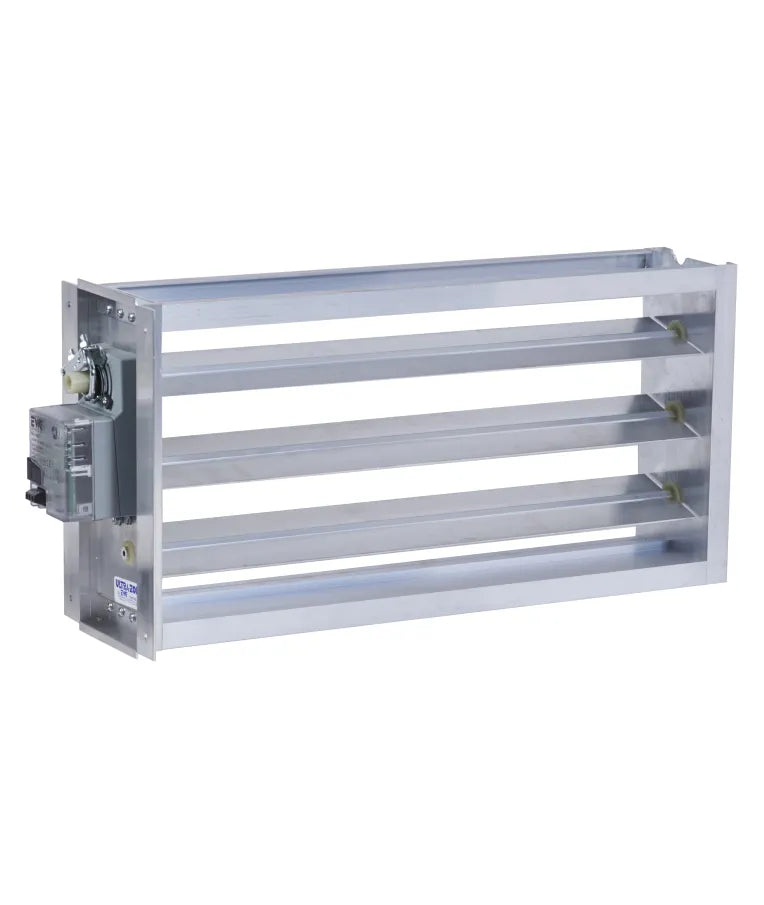

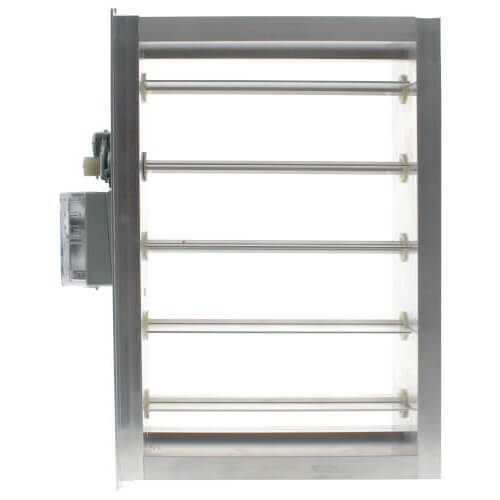

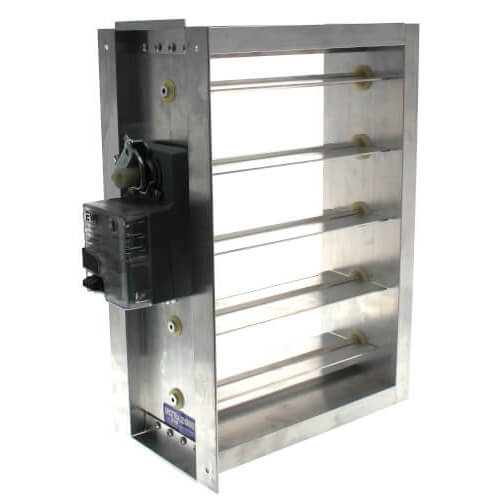

The EWC CONTROLS ND-8X14-MA15S ND Motorized Damper is an 8" x 14" rectangular damper with a 24V motor. The MA-15S motor actuator is easy to install and wire, ensuring long life and zero maintenance. It features dual end-stop adjustments for maximum open and minimum close field position capability and can operate in floating mode.

• Size: 8" x 14"
• Voltage: 24V
• Features an LED light
• Motor actuator is easy to install and wire

Product Highlights

This motorized damper is designed for air quality applications and includes a 24V motor with a 15-second travel time. The motor can be oriented in any position within a conditioned area.

Product Information

Standard Information

• Brand: EWC CONTROLS
• Manufacturer Part Number: ND-8X14-MA15S
• Country of Origin: United States

Technical Specifications

• Product Type: ND Motorized Damper
• Size: 8" x 14"
• Voltage: 24 V
• Shape: Rectangle
• Wires to Motor: 3
• Motor Mount: Bottom
• Application: Air Quality
• Brand: EWC Controls
• Type: Motorized Damper
• Power Source: Corded Electric
• Model: 8x14 ND-15S
• Material: Aluminum
• MPN: MA-15S, 8x14 ND-15S
• Country of Origin: United States
• Power Supply: 24 VAC ± 20% 50/60Hz (24 VDC ± 10%)
• Power Consumption: 1.5 W
• Transformer Sizing: 2.5 VA (Class 2 power source)
• Electrical Connection: Screw Terminal (26 to 14 GA Wire)
• Control Function: Open / Close or Floating Point
• Torque: 18 in-lb [2 Nm]
• Manual Override: External Push Button
• Running Time: 15 seconds, constant independent of load
• Humidity: 5 to 95% RH Non-Condensing
• Ambient Temperature: -22°F to +122°F [-30°C to +50°C]
• Storage Temperature: -40°F to +176°F [-40°C to +80°C]
• Housing: NEMA 1 / IP20
• Housing Material: UL94-5VA
• Agency Listings: cULus
• Noise Level: 45 dB(A)
• Product Height (in.): 17”
• Product Width (in.): 7”
• Product Depth (in.): 14”
• Unit Weight: 5.3 lbs
