EWC Controls ND-24X10 24wX10h PARALLEL 24v 3WIRE Replacement MPN ND24.10

Product Description

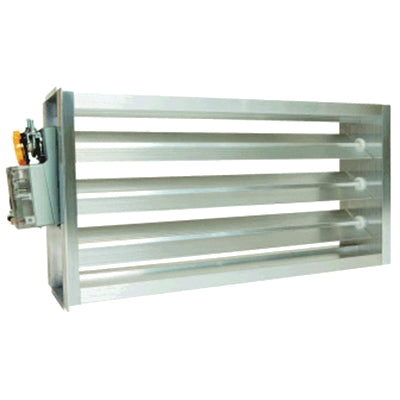

The EWC Controls ND-24X10 is a 24x10 inch motorized zone damper designed for HVAC systems. It operates on 24 volts and uses a 3-wire configuration. This damper is built for efficient air distribution in industrial applications.

• 24x10 inch dimensions
• 24 volts, 3-wire configuration
• Extruded aluminum for durability

Product Highlights

The EWC Controls ND-24X10 features robust construction, reliable performance, and easy installation. It's designed for use in high-demand environments and offers long-lasting durability, reduced maintenance, and improved air control.

Product Information

Standard Information

• Item Number: ND-24X10
• Brand: EWC Controls

Technical Specifications

• Amperage Rating: 1.5 A
• Blade Type: Parallel
• Dimension: 23-3/16 in L x 6 in W x 9-3/16 in H
• Item Name: Zone Damper with MA-ND4 Actuator
• Material: Extruded Aluminum
• Motor Specifications: 24 VAC
• Motor Type: Power Open and Power Close
• Mounting: Bottom
• Phase: 1 ph
• Pressure Rating: 1.5 in-WG
• Series: ND
• Shape: Rectangle
• Size: 24 x 10 in
• Sub Brand: Ultra-Zone
• Temperature Rating: 185 deg F
• Type: Motorized
• Standards/Certifications: UL listed
