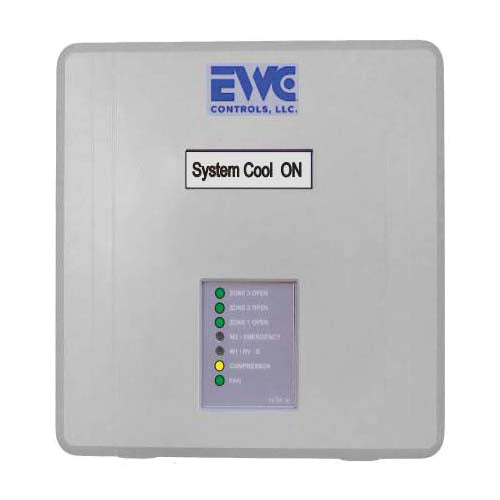

EWC Controls NCM-3Z-L Non-Expandable Zone Control Panel

Product Description

The EWC Controls NCM-3Z-L is a non-expandable zone control panel designed for HVAC systems. This panel supports various configurations, including single-stage systems and heat pump systems, making it versatile for different heating and cooling needs.

• Compatible with single-stage and heat pump thermostats.
• Features a four-button menu for easy operation.
• Includes a safety circuit for connecting to safety devices.

Product Highlights

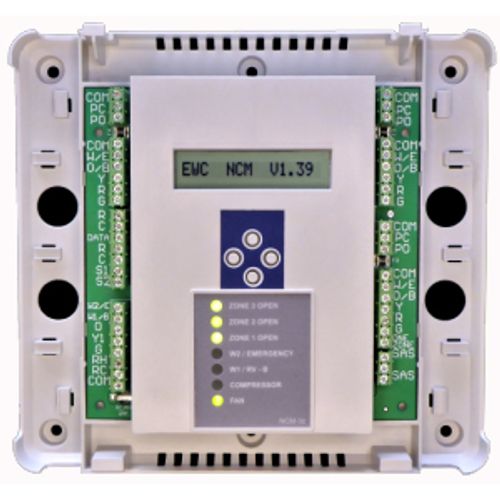

The panel provides real-time feedback through an LCD display, showing system status like supply air temperature and mode. It offers an option for fresh air intake and can create up to three air zones.

Product Information

Standard Information

• Brand: EWC Controls
• MPN: NCM-3Z-L

Technical Specifications

• Voltage: 24 V
• Amperage: 0.125 A
• Frequency: 50/60 Hz
• Zones: 2 to 3 Zones
• Stages: 2 Heat/1 Cool
• Operating Temperature: 0 to 160 deg F
• Operating Humidity: 0 to 95 %
• Wire Gauge: 18 AWG
• Material: Polystyrene
• Dimensions: 8-3/4 in L x 1-3/4 in W x 8-1/4 in H
• Control Output: 24 V Class 2 Control Output
• VA Rating: 6 VA
