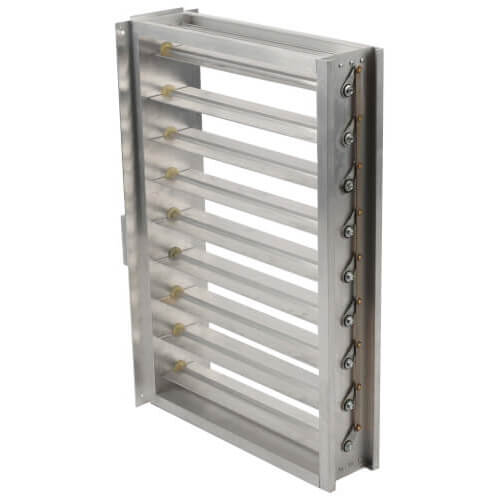

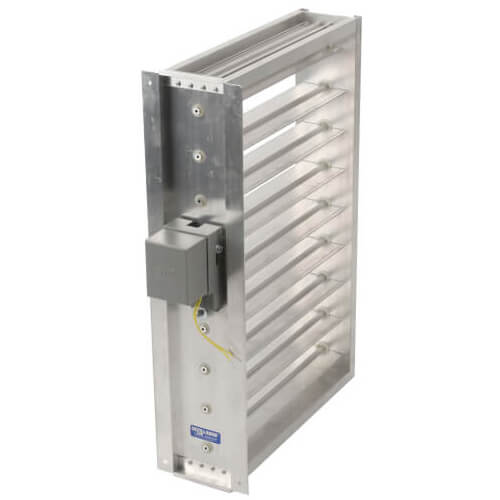

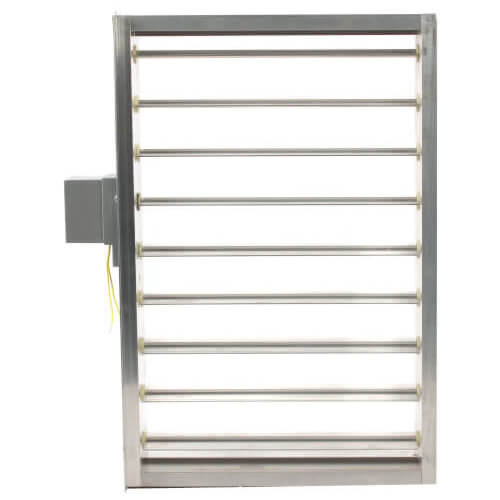

Ewc Controls 8x14 Nd-rsd No Nd-rsd Motorized Spring Return Damper 8 inches x 14 inches

Product Description

The EWC CONTROLS 8x14 ND-RSD NO is an ND-RSD Motorized Spring Return Damper with a normally open position. It features a rectangular shape and is constructed from heavy-duty extruded aluminum with nylon bearings. The motor actuator is a 24V synchronous motor. The motor will be mounted on the second dimension when ordered.

• 8" x 14" size
• 24V voltage
• Normally Open position

Product Highlights

This rectangular parallel blade damper is designed for air quality applications and offers quiet operation with its nylon bearings.

Product Information

Standard Information

• Brand: EWC CONTROLS
• Manufacturer Part Number: 8x14 ND-RSD NO

Technical Specifications

• Product Type: ND-RSD Motorized Spring Return Damper
• Size: 8" x 14"
• Position: Normally Open
• Voltage: 24V
• Motor: Spring Return
• Shape: Rectangle
• Wires to Motor: 2
• Motor Mount: Bottom
• Application: Air Quality
• Brand: EWC Controls
• Motorized: Yes
• Spring Return: Spring Return (NO)
• Type: Rectangular Dampers
