Ewc Controls 30X14 Nd Motorized Damper 30 inches x 14 inches

Product Description

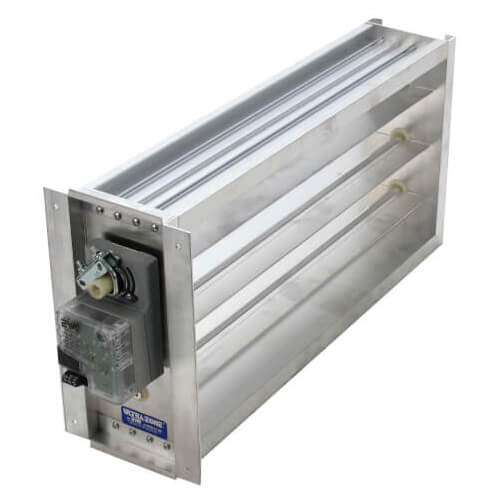

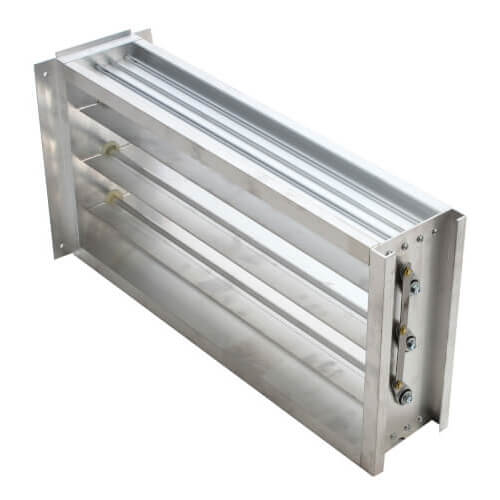

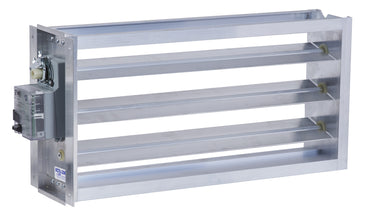

The EWC CONTROLS 30X14 ND series Ultra-Zone damper is designed for ease of installation and checkout. An LED display allows visual inspection of damper operation. Its sturdy frame facilitates faster duct installation, while nylon bushings ensure quieter operation. It features a simple 3-wire hook-up and the motor is mounted on the second dimension specified.

• Heavy Duty Frame
• Nylon Bushings for Quieter Operation
• Revolutionary Motor with greater Reliability

Product Highlights

Easy to install and operate, this damper features an LED display, sturdy frame, and quiet operation, ensuring accurate zone control.

Product Information

Standard Information

• Brand: EWC CONTROLS
• Manufacturer Part Number: 30X14 ND

Technical Specifications

• Size: 30" x 14"
• Voltage: 24V
• Features: LED Light
• Shape: Rectangular
• Wires to Motor: 3
• Motor Mount: Side
• Application: Air Quality
• Item Number: 30X14 ND
• Brand: EWC Controls
• Motorized: Yes
• Size (in): 30 x 14
• Spring Return: Non-Spring Return
• Type: Rectangular Damper
