Ewc Controls 24X14ND ND Motorized Damper 24V 24 inches x 14 inches

Product Description

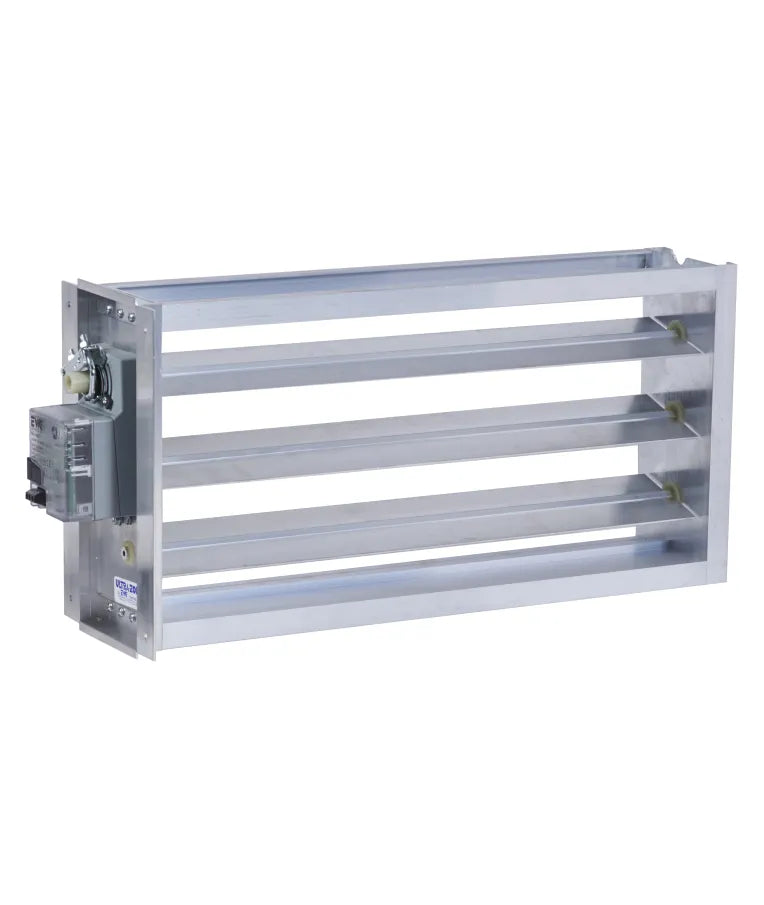

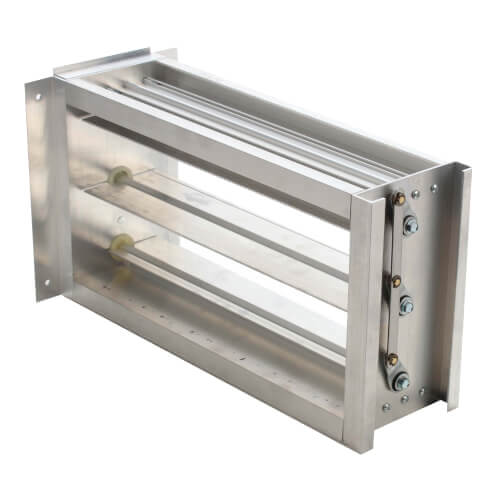

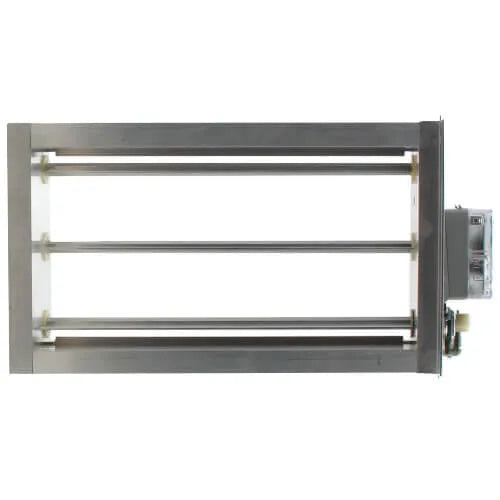

The EWC CONTROLS 24X14ND ND Motorized Damper is a 24" x 14" rectangular unit operating at 24V, suitable for air quality applications. It features heavy-duty 0.80” extruded aluminum construction and nylon bearings for quiet operation. The damper includes a UL Listed Motor Actuator with 3-wire power open/power close functionality, rated at 18 lbs. of torque, and is NEMA Class 2 certified. An LED display provides visual checks of damper operation.

• LED display for visual operation checks and quick diagnostics.
• Heavy-duty 0.80” extruded aluminum construction for durability.
• Nylon bushings ensure quieter operation.

Product Highlights

Easy installation with visual LED operation checks, featuring a 97% leak-proof rating for accurate zone control.

Product Information

Standard Information

• Brand: EWC CONTROLS
• Manufacturer Part Number: 24X14ND

Technical Specifications

• Shape: Rectangular
• Input Voltage: 24V
• Application: Air Quality
• Motor Mount: Side
• Motor Wiring: 3-wire
• Construction Material: 0.80 inch Extruded Aluminum
• Max Static Pressure: 1.5 inch wc
• Max Duct Velocity: 1500 FPM
• Motor Actuator Certification: UL Listed, NEMA Class 2
• Motor Actuator Function: Power Open/Power Close or Floating
• Motor Torque: 18 inch-lbs
• Motor Actuator Housing Rating: NEMA1
• Spring Return: Non-Spring Return
• Damper Type: Rectangular
