Ewc Controls 22X14ND ND Motorized Damper 24V 22 inches x 14 inches

Product Description

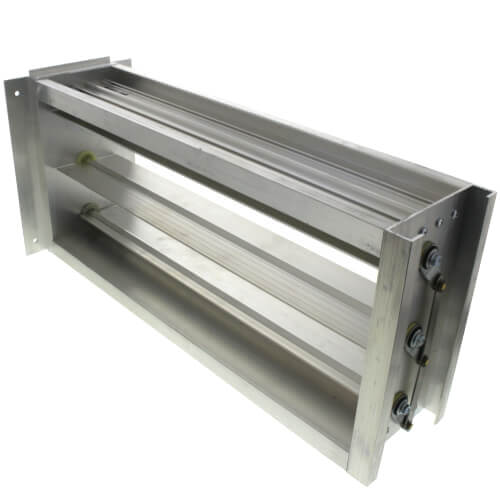

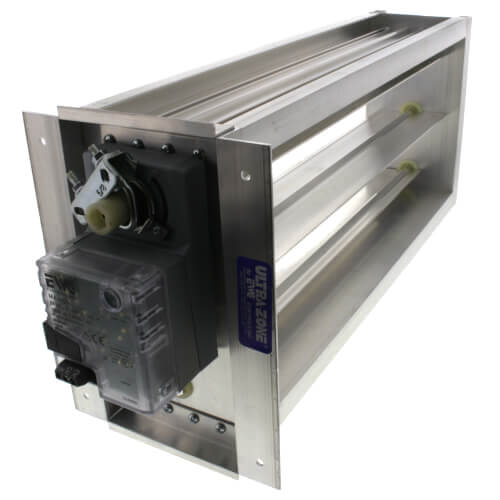

The EWC CONTROLS 22X14ND ND Motorized Damper is a 24V rectangular damper, measuring 22" x 14", designed for air quality applications. It features a side-mounted motor and a 3-wire hook-up for straightforward installation. The damper includes an LED display for visual confirmation of operation, a heavy-duty frame, and nylon bushings for quiet performance.

• LED display provides visual confirmation of damper operation.
• Heavy-duty frame and nylon bushings ensure quiet and durable performance.
• Simple 3-wire hook-up facilitates straightforward installation.

Product Highlights

Motorized rectangular damper with LED display, quiet operation, and easy installation for air quality systems.

Product Information

Standard Information

• Brand: EWC CONTROLS
• Manufacturer Part Number: 22X14ND

Technical Specifications

• Shape: Rectangular
• Input Voltage: 24V
• Application: Air Quality
• Motor Mount: Side
• Product Type: ND Motorized Damper
• Wires to Motor: 3
• Spring Return: Non-Spring Return
• Actuator Model: MA-15S
• Certifications: UL Listed
• Operation Type: Power Open/Power Close
• Torque: 18 inch lbs.
• Travel Time: 15 seconds
• Operating Mode: Floating
• Compatibility: Carrier Infinity & Bryant Evolution communicating zone control systems
• Wiring: Integrated wiring terminal block
• Enclosure Rating: NEMA1
• Adjustments: Dual End-Stop
