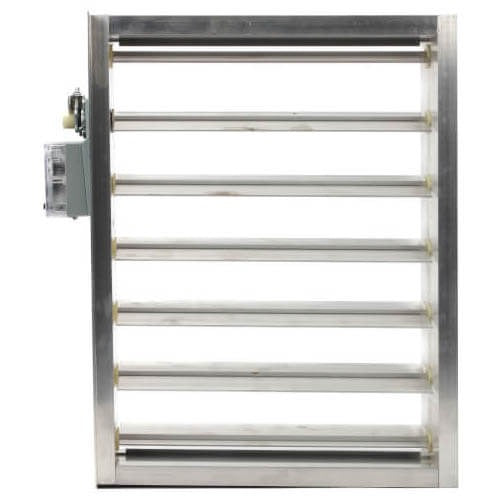

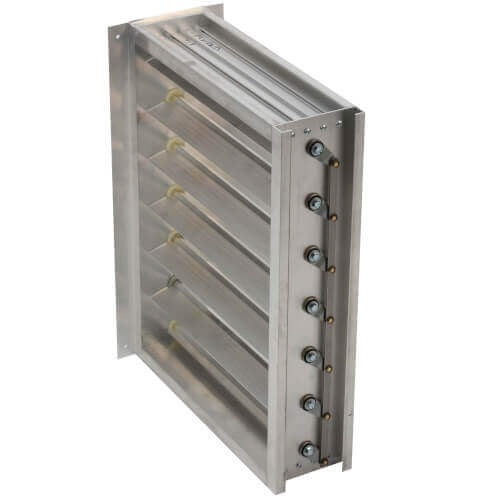

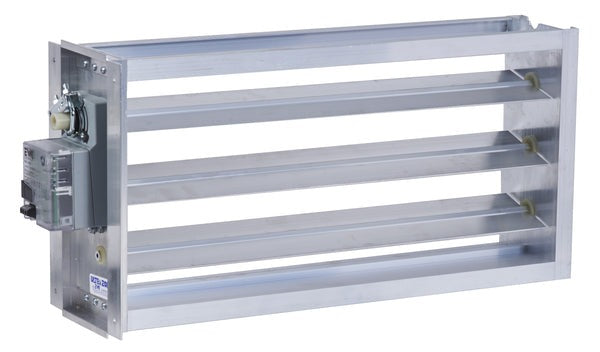

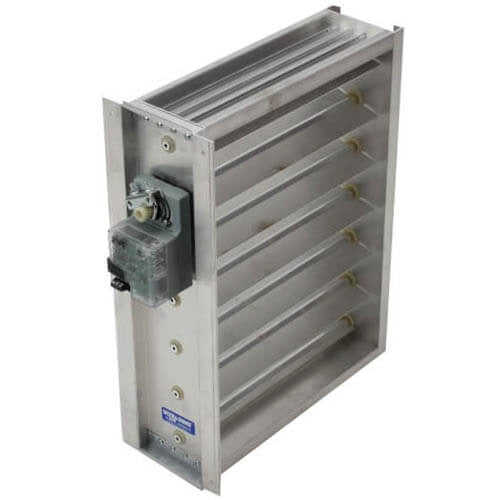

Ewc Controls 16X18 ND Motorized Damper 24V (16 x 18) EWCC16X18-ND

Product Description

Ewc Controls 16X18 ND is a motorized rectangular damper providing power open and power close actuation for duct airflow control in zoning and air quality applications. The damper measures 16 x 18 inches, operates at 24V with a 3-wire motor (common, open, close), features LED open/closed indicator lights, and has a bottom-mounted motor installed on the 18 inch side in a non-spring return configuration.

• 24V operation with 3-wire motor connections: common, open, close
• Rectangular 16 x 18 inch damper with bottom motor mount; motor installed on the 18 inch side
• Power open/power close actuation with LED open/closed indicator; non-spring return design

Product Highlights

Motorized 16 x 18 in rectangular damper, 24V 3-wire power open/power close actuation, bottom-mounted motor on 18 in side with LED position indicators; non-spring return.

Product Information

Standard Information

• Brand: EWC CONTROLS
• Manufacturer Part Number: 16X18 ND
