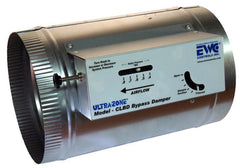

Ewc Controls 16 CLBD Pressure Regulating Bypass Damper 16 inches

Product Description

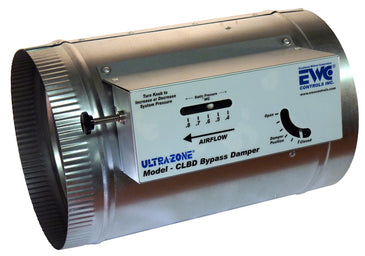

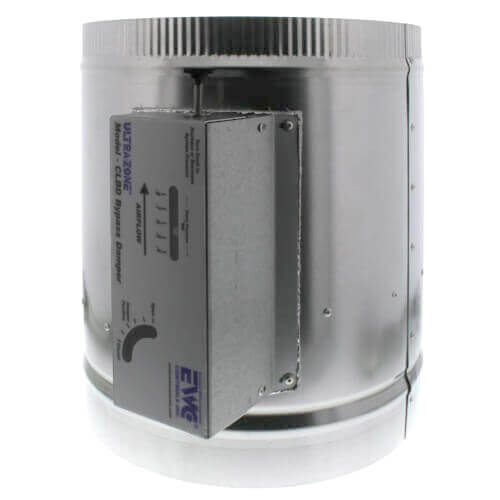

The EWC CONTROLS 16 CLBD Constant Load By-Pass Damper is designed to eliminate the guesswork of setting a manual by-pass damper. It allows setting the desired static pressure with a simple turn of a setscrew, adjustable from 0.3" WC up to 0.8" WC. A blade indicator viewing window shows the blade position during operation. It can be installed at any angle and in any position.

• Easy and economical way to manage system static pressure
• Damper adjustment is easily achieved
• Can be installed in any position on your bypass duct-work

Product Highlights

This bypass damper is a cost-effective solution for managing static pressure in zoned HVAC systems, minimizing bypass volume and preventing pressure from rising above the setpoint.

Product Information

Standard Information

• Brand: EWC CONTROLS
• Manufacturer Part Number: 16 CLBD

Technical Specifications

• Product Type: Pressure Regulating Bypass Damper
• Size: 16"
• Air Flow Capacity (CFM): 2200
• Item Number: 16 CLBD
• Brand: EWC Controls
• Motorized: No
• Shape: Round
• Spring Return: Non-Spring Return
• Type: Bypass Dampers
• Configuration: Bypass Constant Load
• Manufacturer: EWC Controls
