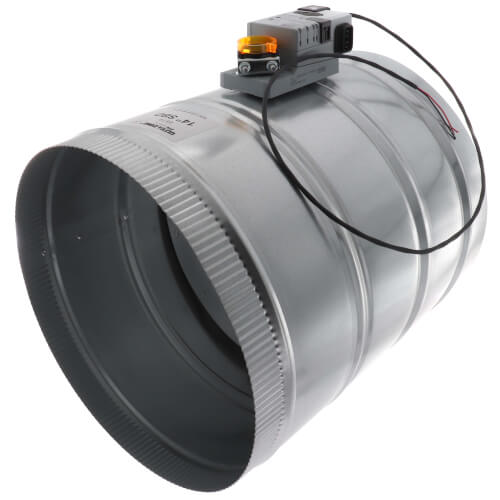

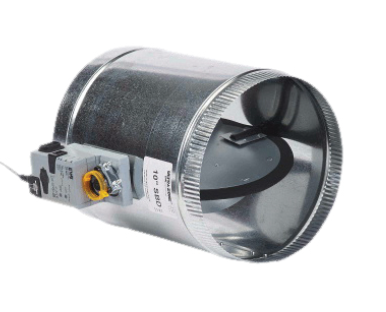

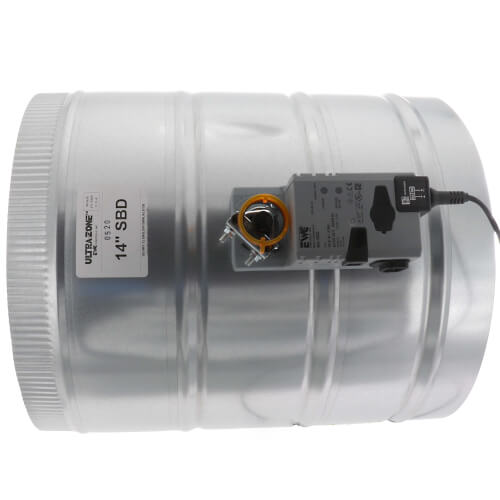

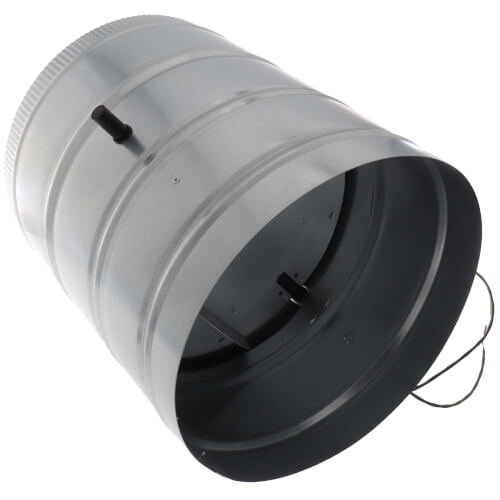

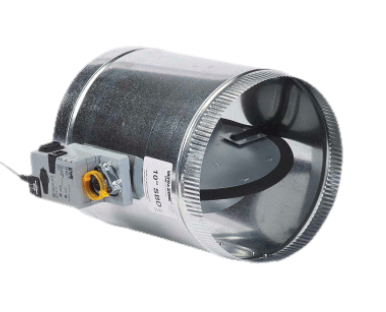

Ewc Controls 14 SBD Smart Static Pressure Bypass Damper 14 in

Product Description

The EWC CONTROLS 14 SBD smart by-pass damper captures the total static pressure of the HVAC system during a non-zoned mode and modulates to maintain that same static pressure during any zoned mode. The SBD will sense the current static pressure in the duct system and modulate to maintain the designed operating static pressure. It features a curved blade design and can be mounted in any direction.

• Automatically measures, monitors, and maintains the designed operating static pressure of any system.
• Curved blade design will maintain true static pressure
• Self-balances in all modes of operation

Product Highlights

The smart by-pass damper is easy to set up with single push button and LED indicators. No measuring instruments are required.

Product Information

Standard Information

• Brand: EWC CONTROLS
• Manufacturer Part Number: 14 SBD

Technical Specifications

• Product Type: Bypass Damper
• Unit Length (in.): 14 in.
• Size: 14"
• Voltage: 24 VAC
• Gauge: 24 ga
• Temperature Range (F): -40°F to 169°F
• Shape: Round
• Hertz: 50/60
• Phase: 1
• Type: Static Pressure
• Nominal Size: 14 in Dia
• Material: Steel
• Motor Voltage: 24 VAC
• Torque Rating: 4 VA
• Temperature Range: -40 to 169 deg F
• Connection: 18 AWG Copper Wire
• Duct Pressure: 0.1 to 2.4 in-WC
• Power Rating: 2 W
