Ewc Controls 12 Sbd 12 Inch Smart Bypass Damper

Product Description

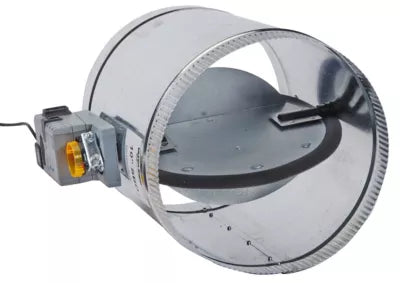

The EWC CONTROLS 12 SBD is a 12-inch self-balancing smart bypass damper designed for zoned HVAC systems where automatic pressure regulation is required. Using a barometric bypass design with a uniquely engineered blade, the 12 SBD eliminates the need for measuring instruments, adjustable weights, or manual spring calibration during setup. The result is a faster, repeatable bypass installation that meets ACCA Manual Zr compliance requirements. Constructed from steel and rated for 50/60 Hz operation, this damper draws between 1.5 and 4 amps depending on system conditions. It is installed by licensed HVAC technicians as part of a zoned duct system.

The 12 SBD is suited for residential and light-commercial zoned forced-air systems where a bypass damper is required to relieve excess static pressure when zone dampers close. Because the unit is self-balancing, there is no need to install a separate bypass balancing hand damper alongside it. This simplifies duct layouts and reduces commissioning time on multi-zone retrofits and new installations alike. Systems using conventional zone control panels with standard bypass duct configurations are the primary application.

Key Features

• Self-balancing blade design eliminates manual weight and spring adjustment during setup
• No measuring instruments required for commissioning
• Barometric bypass operation automatically regulates system static pressure
• ACCA Manual Zr compliant for zoned HVAC applications
• Removes the need for a separate bypass balancing hand damper
• Steel construction rated for 50/60 Hz electrical service

Compatibility

Designed as an OEM-style bypass damper for zoned forced-air HVAC duct systems requiring a 12-inch barometric bypass damper installation.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with zoned duct system design and ACCA Manual Zr guidelines. Shut down the air handler and de-energize the zone control panel before installing or wiring the damper. Follow the manufacturer wiring diagram for low-voltage control connections and verify the bypass duct is sized appropriately for the system. Do not restrict the damper blade movement after installation, as the self-balancing function depends on unrestricted blade travel.

Technical Specifications

• Damper Size: 12 inches
• Damper Type: Barometric Bypass
• Amperage: 1.5 to 4 amps
• Cycle/Hertz: 50/60 Hz
• Material: Steel
• Weight: 8.6 pounds
• Compliance: ACCA Manual Zr

Standard Information

• Brand: EWC CONTROLS
• Manufacturer Part Number: 12 SBD
