Ewc Controls 10 sbd smart bypass damper 24 vac 10 inch

Product Description

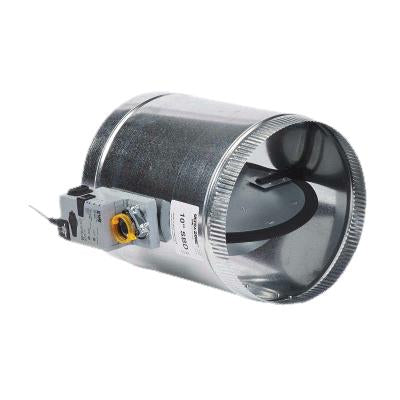

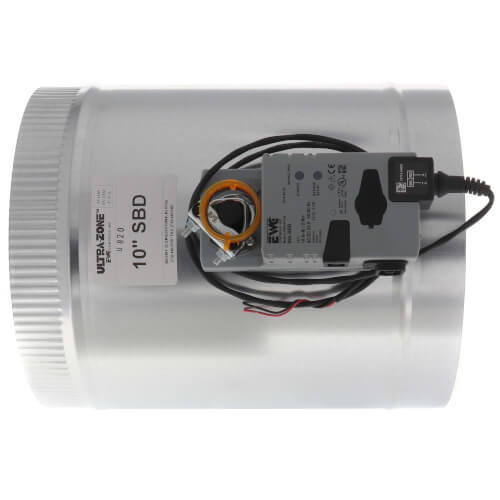

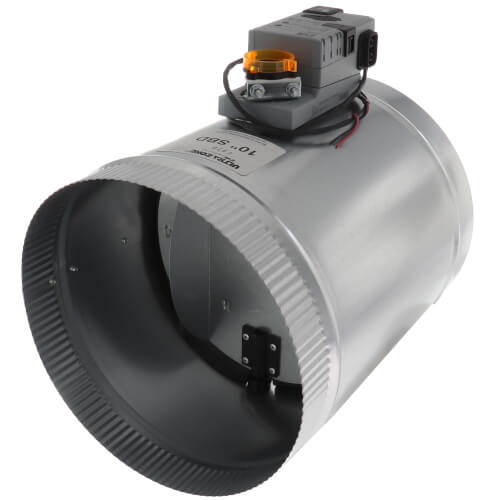

The EWC CONTROLS 10 SBD Smart Bypass Damper is a digital differential pressure controller designed for HVAC systems. It features an integrated PI loop and intelligent software to automatically measure, monitor, and maintain the designed operating static pressure in all modes. This 10-inch round damper, operating at 24 VAC, ensures consistent system performance by modulating to prevent static pressure fluctuations during zoned operation. It is constructed from 24 gauge galvanized steel with a curved blade design.

• Digital differential pressure controller with an integrated PI loop and intelligent software.
• Automatically measures, monitors, and maintains the designed operating static pressure of the HVAC system.

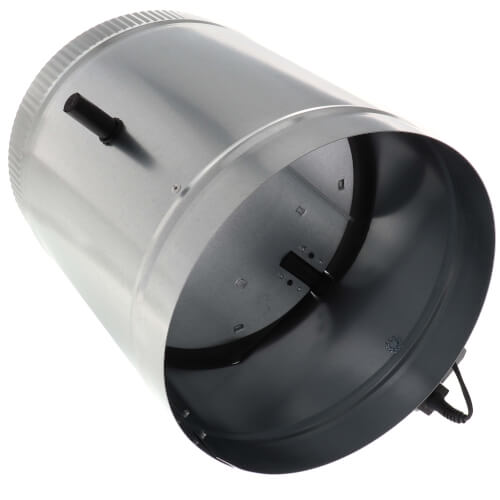

• Features a curved blade design for improved pressure drop baffling and increased linear response.

Product Highlights

The EWC CONTROLS 10 SBD Smart Bypass Damper provides automatic static pressure control for HVAC systems, featuring a digital controller, curved blade, and NFC interface for advanced monitoring.

Product Information

Standard Information

• Brand: EWC CONTROLS
• Manufacturer Part Number: 10 SBD

Technical Specifications

• Size: 10 inches
• Blade Type: Curved
• Differential Pressure: 0.1 to 2.4 in-WC
• Electrical Connection: 18 AWG Copper Wire
• Finish: Galvanized
• Gauge: 24 ga
• Material: Steel
• Mounting Type: Horizontal, Vertical
• Phase: 1 ph
• Power Rating: 2 W
• Series: SBD Series
• VA Rating: 4 VA
• Shape: Round
• Voltage Rating: 24 VAC
• Type: Static Pressure
• Temperature Range: -40 to 169 deg F
