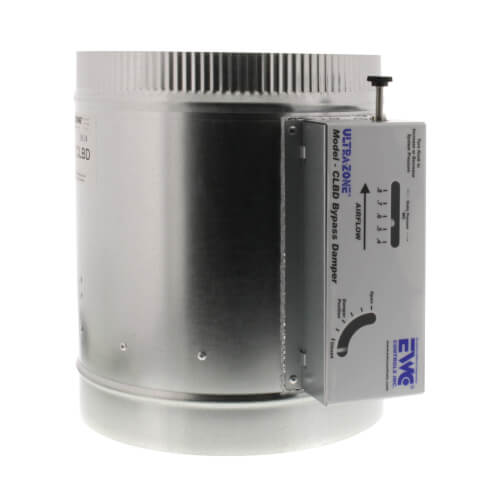

EWC Controls 10-CLBD Ultra-Zone Constant Load Bypass Damper, 10 in

Product Description

The EWC Controls 10-CLBD is a constant load bypass damper designed for efficient management of static pressure in zoned HVAC systems. This model offers an economical solution for maintaining system performance and can be easily installed in any position on bypass ductwork.

• Designed for zoned HVAC systems
• Adjustable for optimal static pressure control
• Simple installation with a unique magnetic latch

Product Highlights

The 10-CLBD minimizes bypass volume while ensuring that the HVAC system static pressure does not exceed the selected set-point. Its straightforward design allows for easy damper blade adjustment by varying the force applied.

Product Information

Standard Information

• Brand: EWC Controls
• Product Name: Ultra-Zone 10-CLBD Constant Load Bypass Damper
• Part Number: L7429

Technical Specifications

• Size: 10 in
• Shape: Round
• Weight: 6.21 lbs
• Air Flow Capacity: 700 CFM
• Length: 12 inches
• Shipping Dimensions: 12.8 x 12.8 x 13.2 inches
