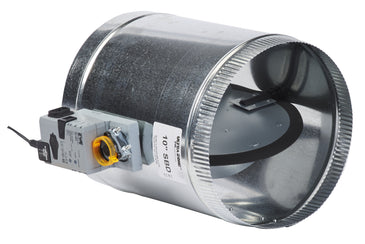

EWC 16SBD 16-Inch Smart Static Pressure Bypass Damper

Product Description

The EWC 16SBD is a 16-inch smart bypass damper from EWC designed to regulate static pressure in HVAC systems. This product modulates to ensure the specified operating static pressure is maintained during zoned operation by sensing the static pressure in the ductwork.

• Maintains static pressure during zoned operation
• Equipped with LED indicators and a setup button
• Versatile mounting in any position

Product Highlights

The damper features a unique blade design that helps with pressure drop management within the duct system. It is compliant with ACCA manual ZR standards.

Product Information

Standard Information

• Brand: EWC Controls
• MPN: 16SBD

Technical Specifications

• Damper Type: Barometric Bypass
• Shape: Round
• Size: 16 Diameter
• Material: Steel
• Operating Temperature: -40°F to 169°F (-40°C to 76.1°C)
• Input Voltage: 24 VAC
• Power Rating: 2 W
• Torque Rating: 4 VA
• Connection: 18 AWG Copper Wire
• Duct Pressure: 0.1 to 2.4 in-WC
• Gauge: 24 GA
• Mounting: Any position
• Network Zoning: Yes
• Heat Pump Compatible: Yes
• LEDs: Yes
• Phase: Single
• Power Method: Hardwired
• Approvals: UL Listed; UL Recognized
