Duc-pac DP1001912.2312.36 Gauge Plenum 19.5x23.5x36 in

Product Description

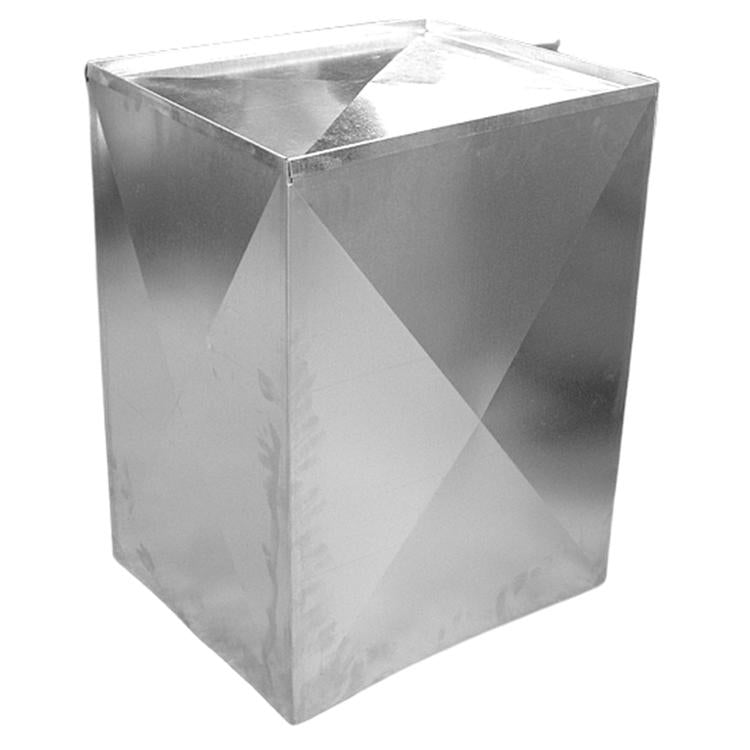

The DUC-PAC DP1001912.2312.36 is a prefabricated sheet metal gauge plenum measuring 19.5 inches by 23.5 inches by 36 inches. Plenums serve as the central air distribution chamber in forced-air HVAC systems, connecting the air handler or furnace to the supply duct network. This unit ships ready to install, reducing fabrication time on the job site. HVAC installers working on residential or light commercial forced-air systems will find this a direct drop-in solution for plenum replacements or new construction duct layouts where these dimensions match the equipment opening.

This plenum is suited for forced-air system installations where a prefabricated plenum box of these dimensions is required. It is appropriate for residential new construction, renovation, or replacement applications where the supply plenum must match an air handler or furnace cabinet with a corresponding opening. Installers working in production housing or service replacement scenarios benefit from the prefab construction, which eliminates on-site layout and cutting of raw sheet metal stock.

Key Features

• Prefabricated construction eliminates field fabrication of the plenum box
• Dimensions: 19.5 inches x 23.5 inches x 36 inches for consistent fit
• Designed for forced-air supply plenum applications
• Gauge sheet metal construction for structural rigidity within the duct system
• Reduces installation time compared to field-fabricated alternatives

Compatibility

Designed as an OEM-style prefabricated supply plenum replacement for forced-air HVAC systems requiring a plenum box with a 19.5-inch by 23.5-inch by 36-inch footprint.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local mechanical codes and SMACNA duct construction standards. Power down the air handler or furnace and shut off any associated gas supply before beginning plenum work. Seal all seams and connections with code-approved mastic or metal tape to meet IECC duct leakage requirements. Do not compress or modify the plenum dimensions, as this will affect airflow balance across the supply system.

Technical Specifications

• Width: 19.5 inches
• Depth: 23.5 inches
• Height: 36 inches
• Construction: Prefabricated sheet metal
• Application: Supply plenum, forced-air HVAC systems
• Quantity per Order: 100

Standard Information

• Brand: DUC-PAC
• Manufacturer Part Number: DP1001912.2312.36
