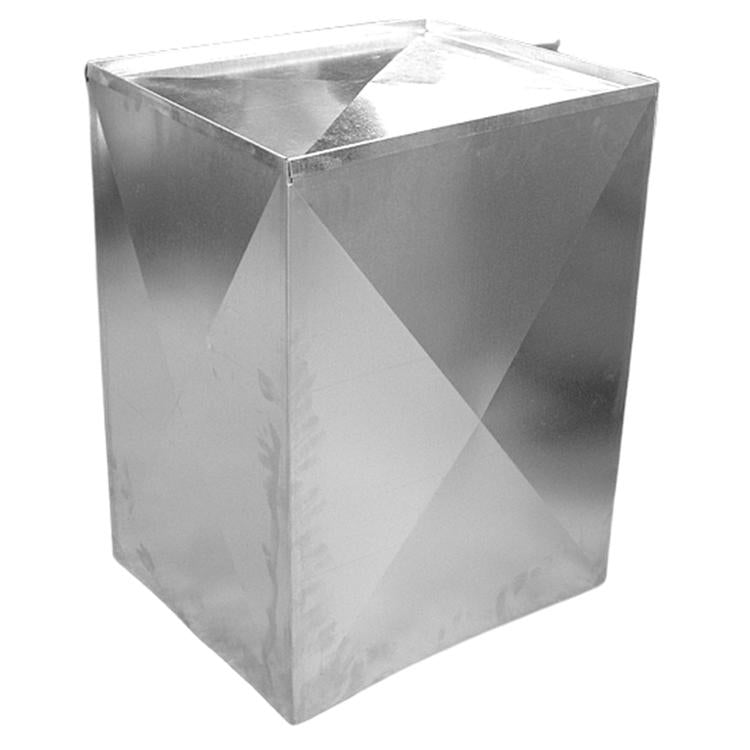

Duc-pac DP1001912.1912.36 Sheet Metal Plenum 19.5x19.5x36 in

Product Description

The DUC-PAC DP1001912.1912.36 is a prefabricated 26-gauge sheet metal plenum section sized at 19.5 inches x 19.5 inches x 36 inches, sold in a pack of 100 units. Plenums form the central air distribution chamber in forced-air HVAC systems, connecting the air handler or furnace to the supply duct network. At 26 gauge, this plenum offers the structural rigidity needed for residential and light commercial trunk-line applications. Licensed HVAC installers and sheet metal contractors are the primary trades that specify and install this component during new construction or system replacement work.

This plenum is sized for use in residential and light commercial forced-air systems where a 19.5-inch by 19.5-inch cross section is required. The 36-inch length suits typical air handler and furnace plenum runs. The 100-unit pack quantity makes this product practical for contractors handling multiple job sites, production builds, or large-scale system installations where consistent, factory-fabricated duct components reduce field labor and improve installation uniformity.

Key Features

• 26-gauge sheet metal construction provides rigidity suitable for plenum pressure zones
• 19.5 inches x 19.5 inches cross section fits standard residential and light commercial air handler connections
• 36-inch length reduces the number of field joints needed in straight plenum runs
• Prefabricated format cuts field fabrication time on production builds and multi-unit projects
• Pack of 100 units supports high-volume contractor purchasing

Compatibility

Designed as an OEM-style prefabricated replacement or new-construction plenum for forced-air HVAC systems requiring a 19.5-inch by 19.5-inch by 36-inch sheet metal plenum section.

Installation Notes

Plenum installation is performed by licensed HVAC technicians or sheet metal contractors in accordance with SMACNA duct construction standards and local mechanical codes. Power down and lock out the air handler or furnace before connecting or sealing any plenum section. All joints should be secured with mechanical fasteners and sealed with UL 181-listed mastic or tape rated for the pressure class of the system. Do not compress, cut, or modify the plenum cross section in a way that reduces designed airflow area without engineering review.

Technical Specifications

• Gauge: 26 gauge
• Width: 19.5 inches
• Depth: 19.5 inches
• Length: 36 inches
• Pack Quantity: 100 units

Standard Information

• Brand: DUC-PAC
• Manufacturer Part Number: DP1001912.1912.36
