Duc-pac DP1001612.1912.36 Gauge Plenum 100-pack

Product Description

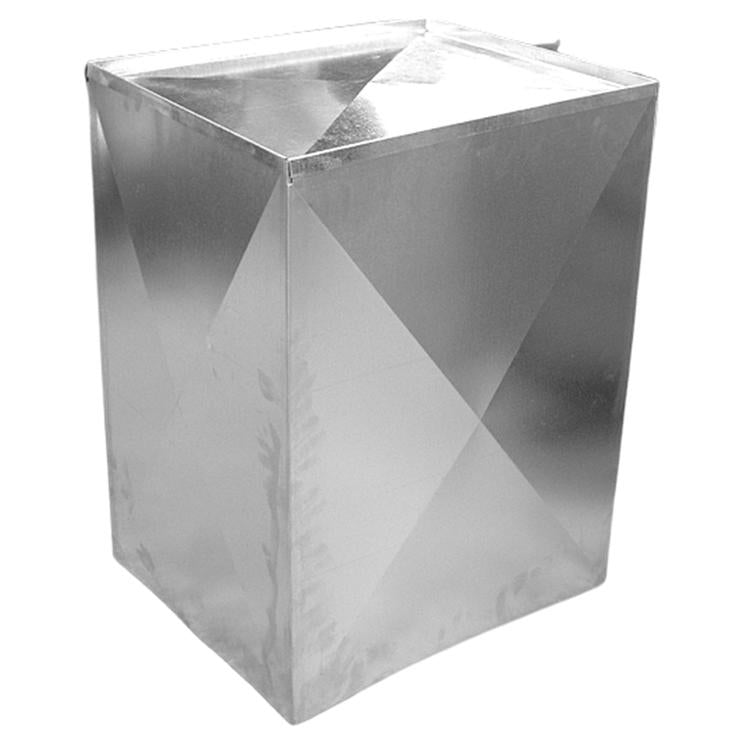

The DUC-PAC DP1001612.1912.36 is a prefabricated sheet metal gauge plenum sized at 16.5 inches x 19.5 inches x 36 inches, sold in a quantity of 100 units. Plenums connect the air handler or furnace to the main duct trunk, forming the pressurized transition point in a forced-air system. This unit is designed for professional HVAC installation in residential and light commercial forced-air systems. The standardized dimensions support efficient field installation and consistent airflow geometry across multiple units on the same job or across a run of similar projects.

This plenum is intended for use in forced-air heating and cooling systems where a supply or return plenum is required at the air handling equipment. The 16.5-inch x 19.5-inch cross-section accommodates common residential and light commercial air handler openings, and the 36-inch length provides ample trunk connection depth. The 100-unit quantity makes this SKU well suited for contractors running high-volume new construction or multi-unit projects where consistent, prefabricated duct components reduce field fabrication time.

Key Features

• Prefabricated sheet metal construction for consistent dimensions across all 100 units
• 16.5 inches x 19.5 inches cross-section fits common residential and light commercial air handler openings
• 36-inch length provides standard trunk connection depth
• Bulk quantity of 100 units supports new construction and multi-unit installs
• Designed by HVAC installers for forced-air system applications

Compatibility

Designed as an OEM-style prefabricated gauge plenum for use in residential and light commercial forced-air heating and cooling systems requiring a 16.5-inch x 19.5-inch plenum opening.

Installation Notes

Sheet metal plenums are typically installed by licensed HVAC technicians as part of forced-air duct system assembly. Power down the air handling equipment and verify the system is de-energized before connecting ductwork at the plenum. Seams and joints should be sealed per local mechanical code requirements, and installation must comply with applicable SMACNA standards and local jurisdiction rules. Do not operate the system with unsealed plenum connections.

Technical Specifications

• Width: 16.5 inches
• Depth: 19.5 inches
• Length: 36 inches
• Quantity: 100 units per order

Standard Information

• Brand: DUC-PAC
• Manufacturer Part Number: DP1001612.1912.36
