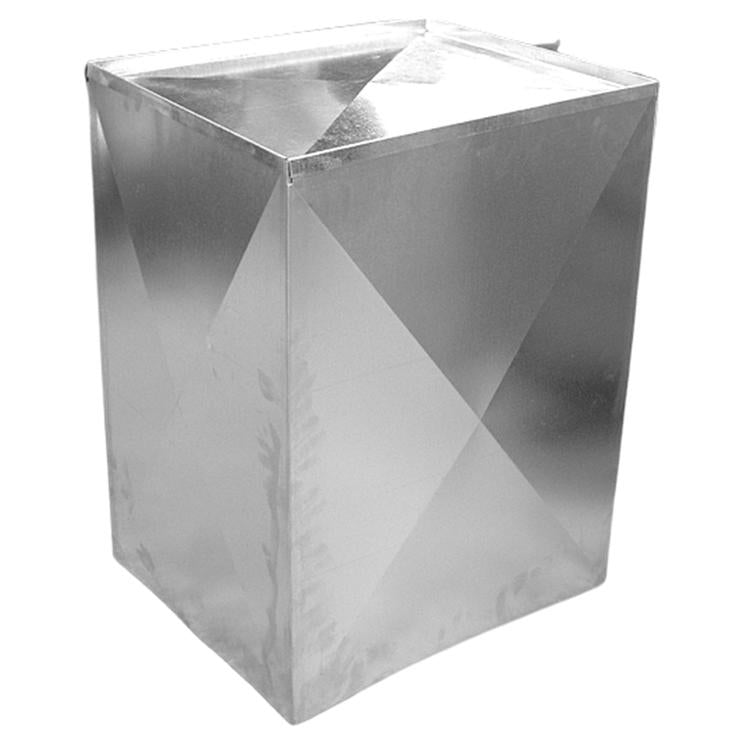

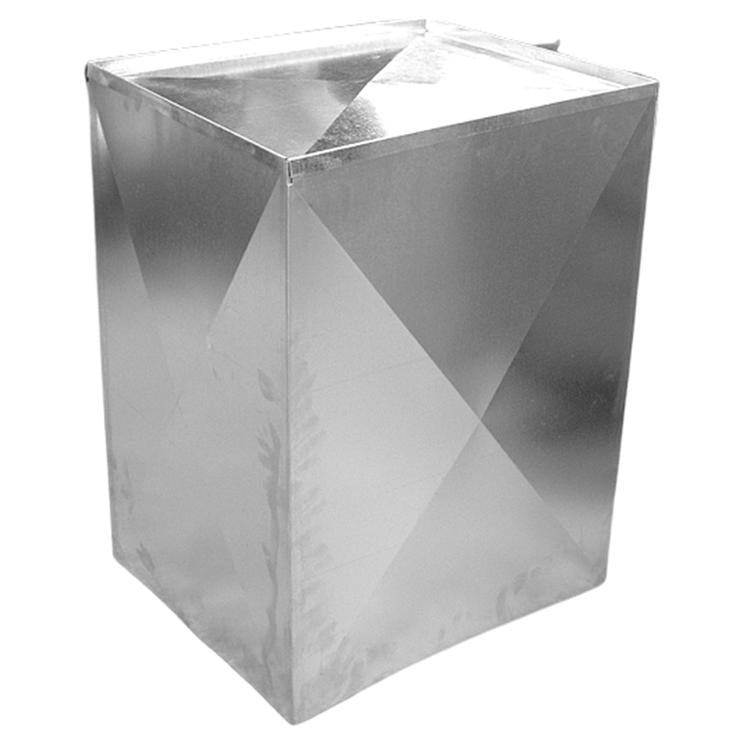

Duc-pac DP10014316.18916.36 26 Gauge Plenum

Brand: DUC-PAC
SKU: DP10014316.18916.36
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$118.91
$118.91
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The DUC-PAC DP10014316.18916.36 is a prefabricated sheet metal plenum section designed for forced air HVAC systems. Fabricated from 26 gauge steel, this plenum measures 14-3/16 inches by 18-9/16 inches by 36 inches and is built to fit into the supply or return air distribution system of a residential or light commercial installation. Licensed HVAC sheet metal installers and mechanical contractors specify prefabricated plenums like this one to reduce field fabrication time and maintain consistent duct geometry throughout the air distribution system.

This plenum section is used in forced air heating and cooling applications where a rectangular duct transition or main trunk connection is required. The 36-inch length makes it well suited for main trunk runs or equipment connections in tight mechanical rooms and crawl space installations. Its 26 gauge construction provides rigidity appropriate for low-pressure residential duct systems. HVAC installers working on new construction or equipment replacement projects will find this a direct-fit prefabricated alternative to field-fabricated ductwork.

Key Features

  • 26 gauge steel construction provides rigidity for low-pressure forced air duct systems
  • Prefabricated form reduces field fabrication time on installation crews
  • 14-3/16 x 18-9/16 inch cross-section fits standard rectangular duct configurations
  • 36-inch length suitable for main trunk runs and equipment plenum connections
  • Designed and built around the practical needs of HVAC installers with decades of field experience behind the product line

Compatibility

Designed as an OEM-style prefabricated replacement or new-installation plenum section for residential and light commercial forced air duct systems using standard rectangular duct geometry.

Installation Notes

Installation should be performed by a licensed HVAC or sheet metal contractor in accordance with SMACNA duct construction standards and applicable local mechanical codes. Power down and lock out the air handling unit before connecting or modifying any duct sections. Secure all seams and joints with approved duct sealant or metal tape to meet leakage requirements. Support the plenum section at intervals consistent with local code and manufacturer guidelines to prevent sagging or joint separation.

Technical Specifications

  • Gauge: 26 gauge
  • Width: 14-3/16 inches
  • Depth: 18-9/16 inches
  • Length: 36 inches
  • Quantity per Order: 100

Standard Information

  • Brand: DUC-PAC
  • Manufacturer Part Number: DP10014316.18916.36

Vendor: DUC-PAC

Duc-pac DP10014316.18916.36 26 Gauge Plenum

$118.91

Vendor: DUC-PAC

Duc-pac DP10014316.18916.36 26 Gauge Plenum

$118.91
