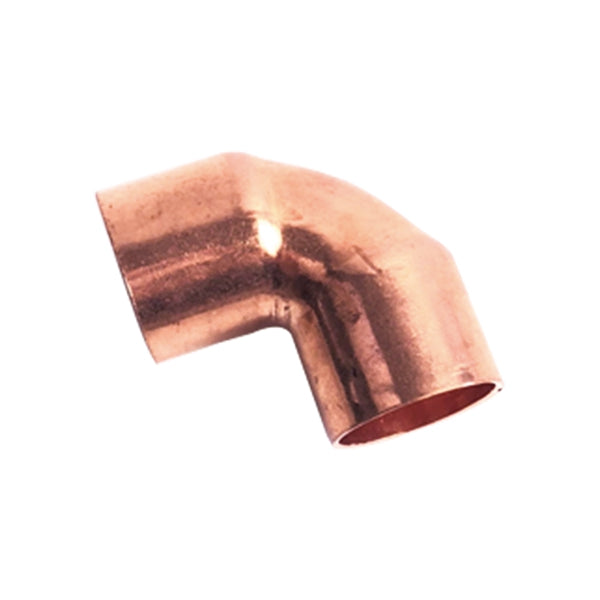

Dakota Sourcing 13004 90 Degree Copper Elbow 5/8 Od

Product Description

The DAKOTA SOURCING 13004 is a 90-degree copper elbow fitting designed for sweat (C x C) connections in plumbing and HVAC refrigerant or water lines. With a 5/8 inch outer diameter and a 1/2 inch inner diameter, this fitting changes flow direction at a right angle within copper tubing systems. It is installed using standard soldering techniques and is appropriate for residential and light commercial plumbing, hydronic heating, and refrigeration piping applications. Licensed plumbers and HVAC technicians are the primary installers of this type of fitting.

This elbow fitting is suited for copper tubing runs where a 90-degree directional change is required. Typical applications include domestic water supply lines, drain and vent rough-in work, refrigerant line sets, and hydronic heating loops. The C x C (copper-to-copper) end configuration accepts standard copper tubing on both ends, making it a straightforward sweat-fit component for new construction and retrofit installations alike.

Key Features

• 90-degree elbow configuration redirects copper tubing runs at a right angle
• C x C (copper-to-copper) sweat-fit ends for standard solder connections
• 5/8 inch OD and 1/2 inch ID sizing matches standard copper tubing dimensions
• Copper construction provides corrosion resistance and long service life in wet environments
• Compatible with standard plumbing solder and flux used in sweat-fit copper work

Compatibility

Designed as an OEM-style replacement or new-install component for copper tubing systems requiring a 90-degree sweat-fit elbow in 5/8 inch OD by 1/2 inch ID sizing.

Installation Notes

Installation is performed by a licensed plumber or qualified HVAC technician using a torch, solder, and appropriate flux rated for copper fittings. Shut off water supply or recover refrigerant before cutting into any existing line. Tubing ends must be cut cleanly, deburred, and cleaned before applying flux and soldering. Follow applicable local plumbing codes and IFGC guidelines for all piping work.
