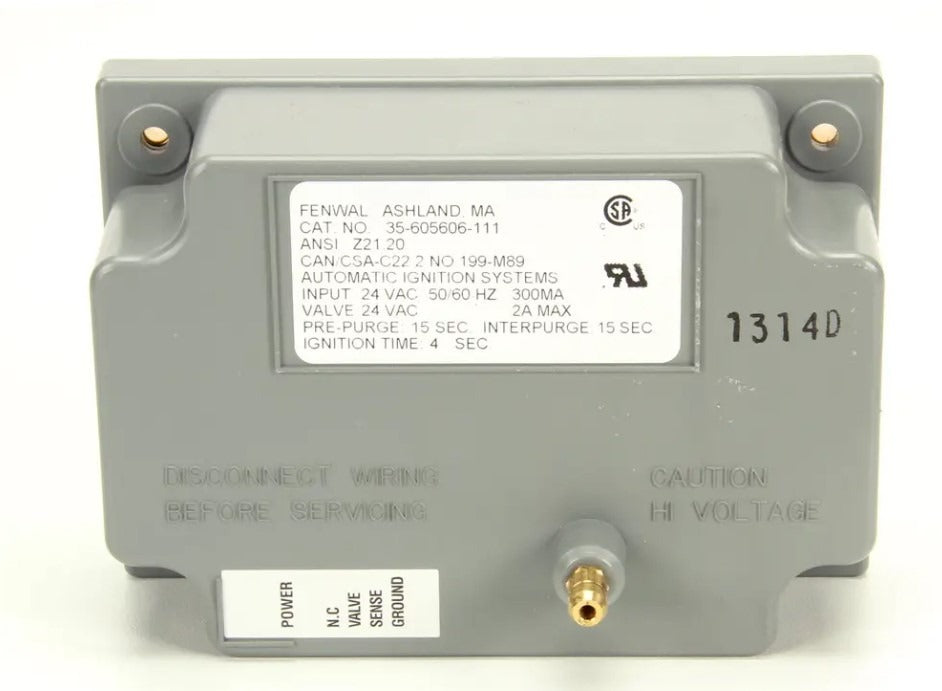

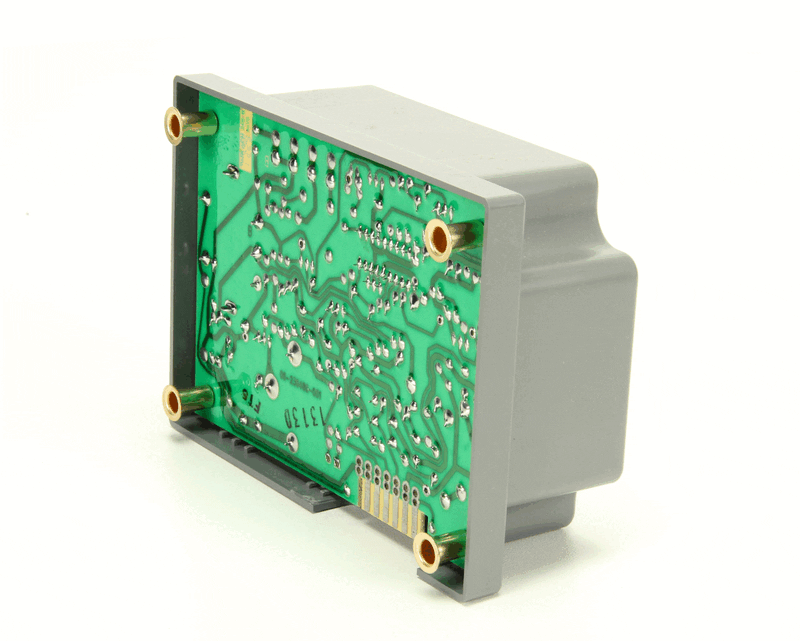

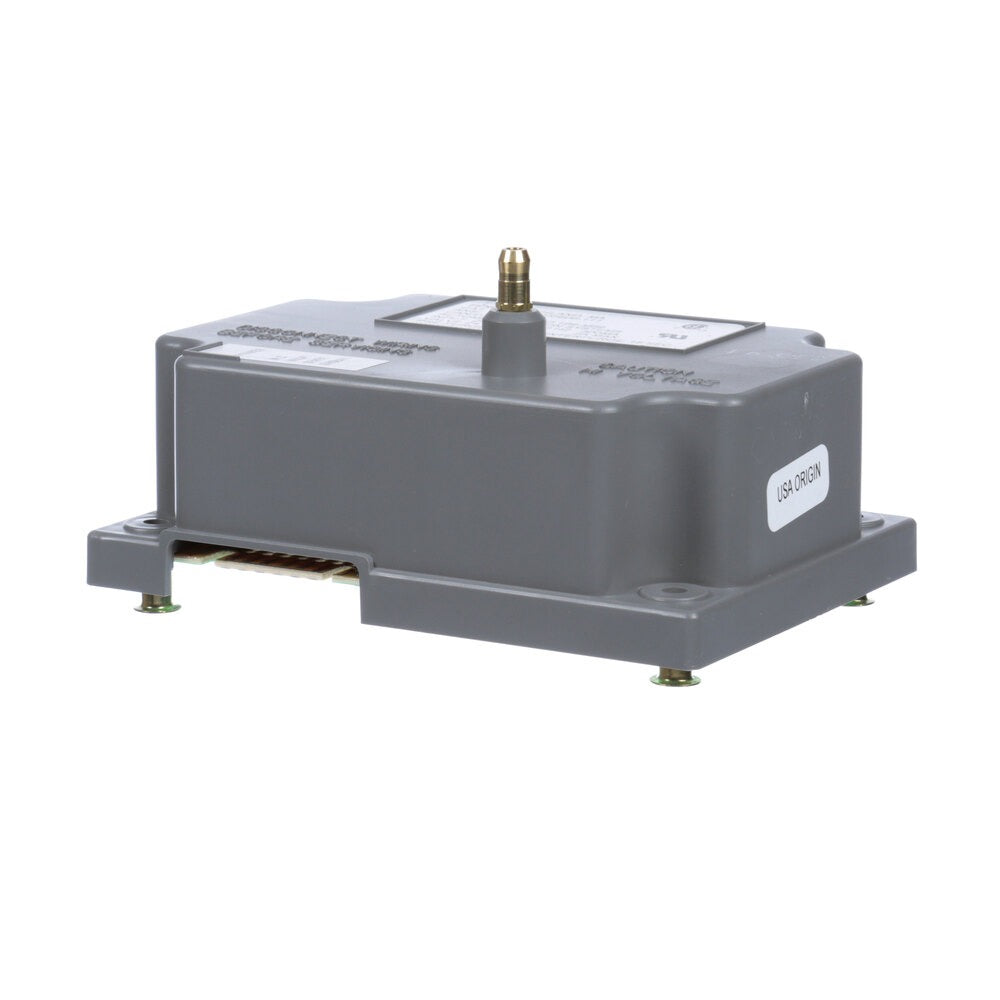

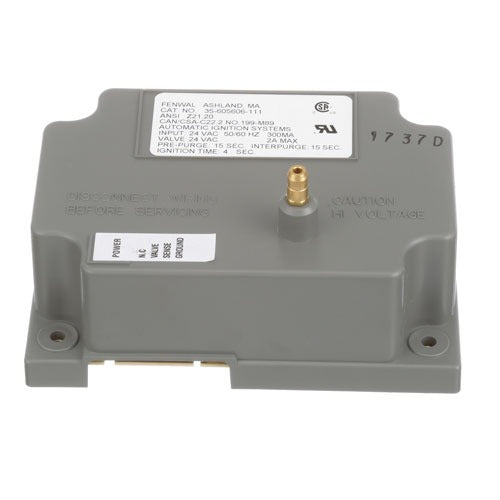

Cleveland KE53469-2 Ignition Module 24 VAC (3-3/4 x 5-1/4) 35-605606-111

Product Description

Cleveland KE53469-2 is an ignition module for commercial Cleveland equipment that controls burner timing and ignition operations. It operates at 24 VAC, 50/60 Hz and uses a spark-plug type ignition with timing sequences including a 15 second pre-purge, 15 second interpurge, and a 4 second ignition interval. The unit is housed in a compact enclosure and mounts with approximately 4-1/2 x 2-7/8 inch centers for direct replacement in compatible kettles.

• Electrical: 24 VAC, 50/60 Hz input; rated 2 A input current (per manufacturer cross-reference).
• Timing: pre-purge 15 seconds, interpurge 15 seconds, ignition time 4 seconds; spark-plug type ignition.
• Physical: enclosure approx. 3-3/4 x 5-1/4 in; product dimensions listed 6.5 x 4.5 x 4.5 in; mounting centers approx. 4-1/2 x 2-7/8 in.

Product Highlights

Fenwal-compatible ignition control module (35-605606-111) for Cleveland KGL/KGT series with 24 VAC timing control.

Product Information

Standard Information

• Brand: CLEVELAND
• Manufacturer Part Number: KE53469-2
• Country of Origin: China
