Cleveland FK22221 Solenoid Valve Kit 110/120V (1/2 in) CLEFK22221

Brand: CLEVELAND
SKU: FK22221
Availability: In Stock

Ships same day if ordered by 12 pm
$714.70
$714.70
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

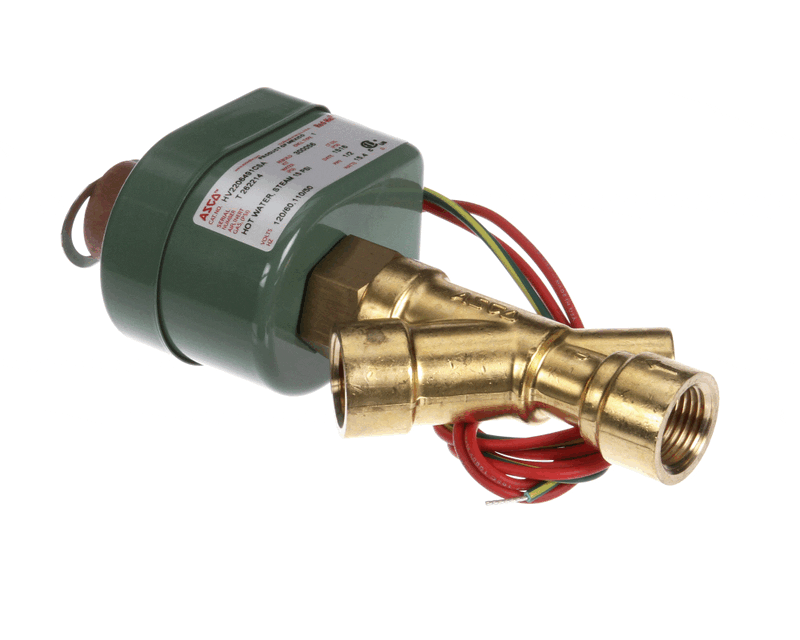

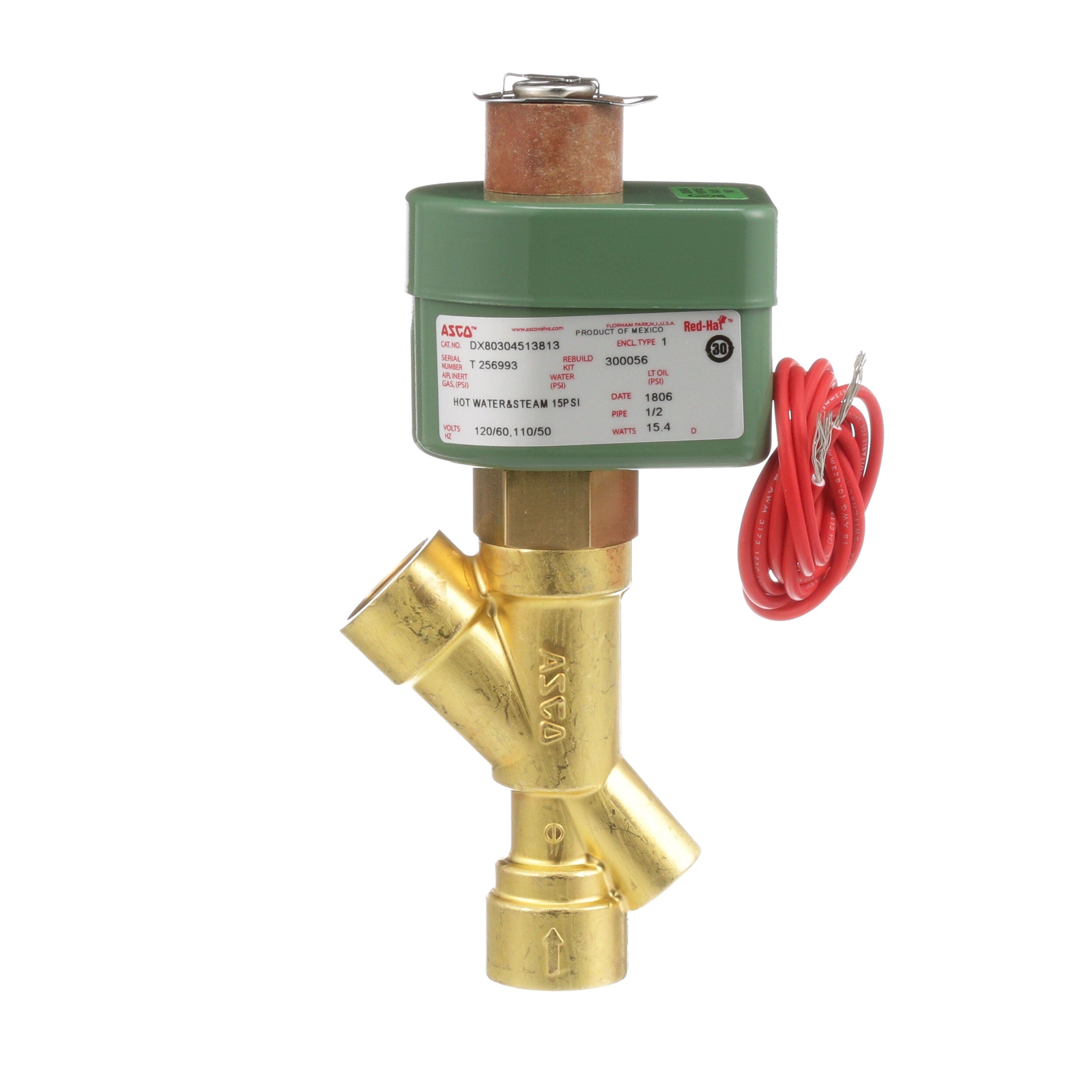

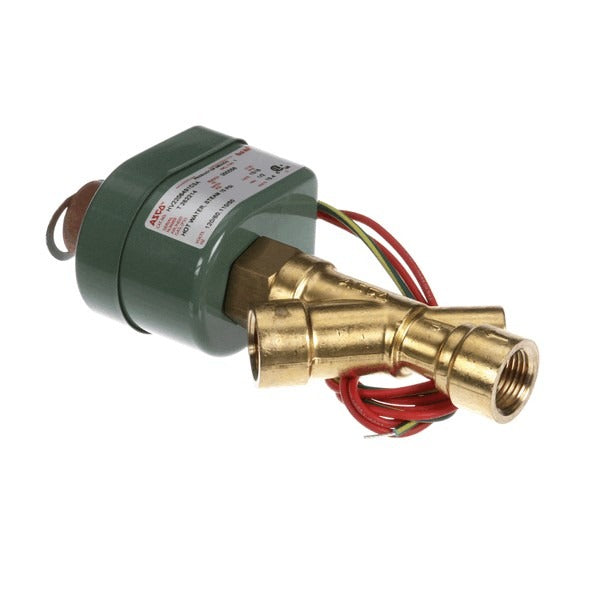

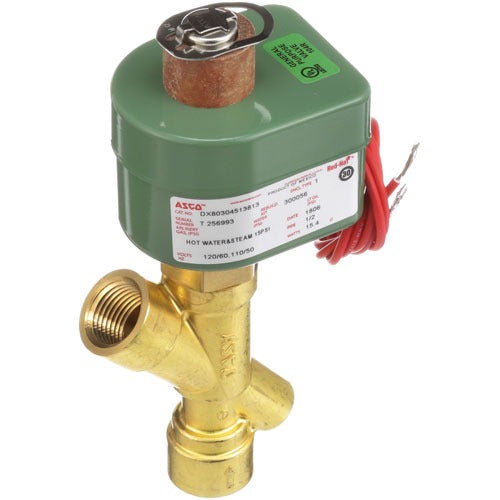

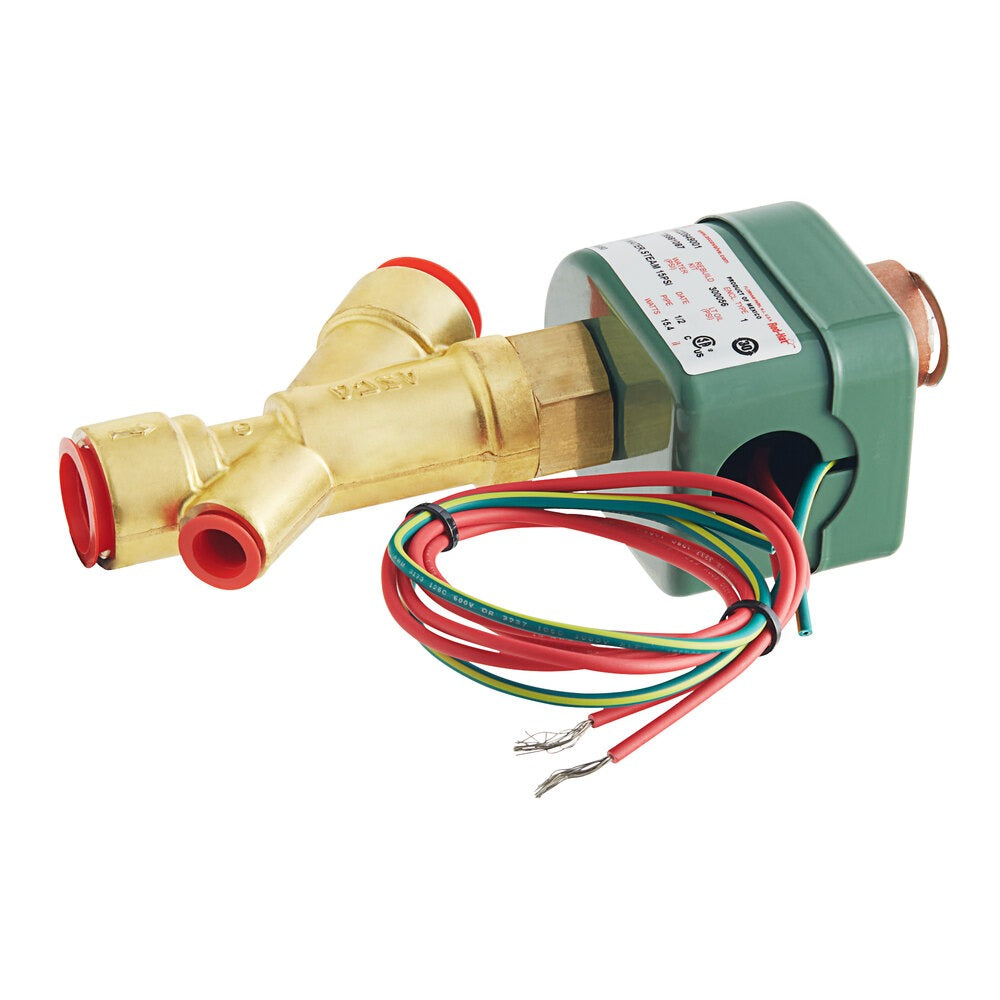

The Cleveland FK22221 is a solenoid valve kit for 1/2 inch drain applications on Cleveland steamers and boilers. It operates on 110/120V (50/60 Hz) with a 15.4 W coil, is normally open, and uses a 45-degree angle configuration. The assembly includes National Pipe Tapered/NPT connections, a screw terminal connector, two ports, and a brass body with a stainless steel exterior that meets CSA specification.

  • Operates on 110/120V (50/60 Hz) with a 15.4 W coil; normally open (N/O) configuration.
  • 1/2 in pipe/port size with National Pipe Tapered inlet and NPT outlet; 45 degree angle.
  • Brass body with stainless steel exterior, screw terminal connector, two ports, CSA compliant.

Product Highlights

1/2 in drain solenoid valve kit; 110/120V, 15.4 W; NPT/NPT connections; screw terminal; CSA compliant.

Product Information

Standard Information

  • Brand: CLEVELAND
  • Manufacturer Part Number: FK22221
  • Country of Origin: Mexico
Technical Specifications
Brand
Cleveland
Manufacturer
Cleveland
Manufacturer Part Number
FK22221
AllPoints OEM Part Number
CLEFK22221
Alternate / AllPoints Product Number
8046423
Description
Kit - Valve, Solenoid, 1/2in Drain
Function
Solenoid drain valve kit
Pipe Size
1/2 in
Valve Type
Solenoid valve (normally open)
Voltage
110/120V
Wattage
15.4 W
Frequency
50/60 Hz
Angle
45 degree
Maximum Temperature
250 F
Maximum Pressure
15 PSI
Inlet Connection Type
National Pipe Tapered
Outlet Connection Type
NPT
Connector Type
Screw terminal
Material
Brass body, stainless steel exterior
Number of Ports
2
Specification Met
CSA
Dimensions (L x W x H)
6.95 in x 4.4 in x 4.4 in
Dimensional Weight (lbs)
0.65781
Unit Count
1
Made In
Mexico
Fits Models / Compatible With
Select Cleveland steamers and boilers (examples include 24/36 CDM, 24/36 CEM, CGM, CSM and multiple CET/CEM/CGM/CSM models); compatible with some Groen steamers
Connector / Repair References
Repair kit #51-1488; coil #51-1096
Alternate Manufacturer Part
ASCO 581034 (listed as alternative replacement)
